M17/75-RG 214 (RG214/U)

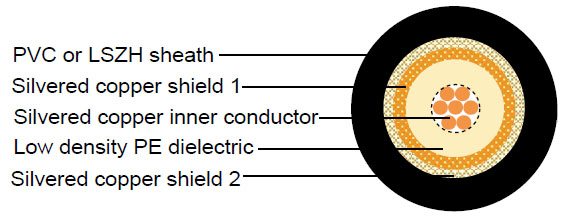

Construction :

  • Inner conductor Silver plated copper 7 x 0.75 mm
    Dielectric Low density PE Φ7.25 ± 0.18 mm
    Outer conductor(shield 1) Silver plated copper 144 x 0.16 mm
    Shield coverage   96%
    Outer conductor(shield 2) Silver plated copper 168 x 0.16 mm
    Shield coverage   98%
    Sheath PVC or LSZH Φ10.8 ± 0.18 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 100 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 6.0 Ohm/Km
    Outer conductor resistance 3.1 Ohm/Km
    Test/Operatig Voltage(max) 10.0 KV/5.0 KV
    Operating temperature range -30 °C - +70 °C
    Copper Weight 117.7 Kg/Km
    Cable weight (approx.) 205.3 Kg/Km
    Screening effectiveness 100-900 MHz >70dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 4.7 1.43
    100 7.1 2.16
    200 10.4 3.17
    400 15.2 4.63
    500 17.4 5.30
    600 19.2 5.85
    860 23.9 7.29
    1000 26.2 7.99

Return Loss :

  • 30-300 MHz >30dB
    300-600 MHz >29dB
    600-900 MHz >27dB
>
