RG 59 PK



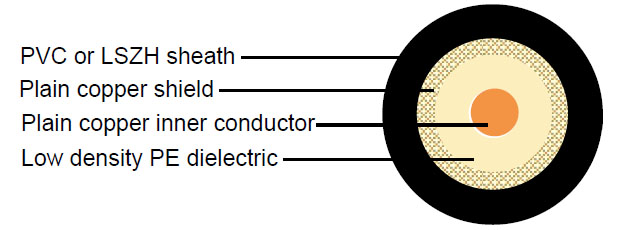

Construction :

  • Inner conductor Copper clad steel(CCS) 0.58 mm
    Dielectric Low density PE Φ3.70 ± 0.10 mm
    Outer conductor (shield) Plain copper 120 x 0.10 mm
    Shield coverage   77%
    Sheath PVC or LSZH Φ6.15 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 158 Ohm/Km
    Outer conductor resistance 19.5 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 11.1 Kg/Km
    Cable weight (approx.) 45.7 Kg/Km
    Screening effectiveness >50 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 7.6 2.32
    100 11.1 3.38
    200 16.2 4.94
    400 23.2 7.07
    500 26.2 7.99
    600 29.3 8.93
    860 35.5 10.82
    1000 38.7 11.80

Return Loss :

  • 30-300 MHz >31dB
    300-600 MHz >28dB
    600-900 MHz >24dB
>
