RG 6 AX

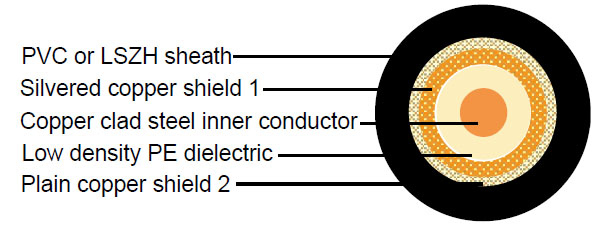

Construction :

  • Inner conductor Copper clad steel(CCS) 0.72 mm
    Dielectric Low density PE Φ4.70 ± 0.10 mm
    Outer conductor(shield 1) Silver plated copper 168 x 0.13 mm
    Shield coverage   97%
    Outer conductor(shield 2) Plain copper 168 x 0.13 mm
    Shield coverage   95%
    Sheath PVC or LSZH Φ8.50 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 106 Ohm/Km
    Outer conductor resistance 5 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 50.5 Kg/Km
    Cable weight (approx.) 112.4 Kg/Km
    Screening effectiveness >70 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 m)
    50 5.8 1.77
    100 8.5 2.59
    200 12.5 3.81
    400 18.0 5.49
    500 20.3 6.19
    600 22.6 6.89
    860 27.5 8.38
    1000 30.4 9.27

Return Loss :

  • 30-300 MHz >28dB
    300-600 MHz >24dB
    600-900 MHz >22dB
>
