RG 6/U6

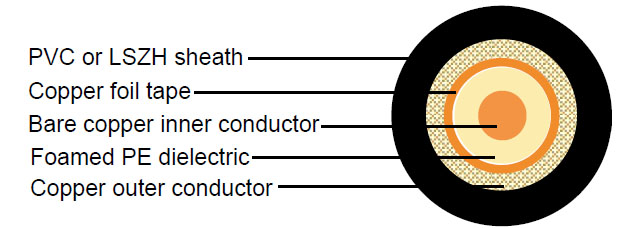

Construction :

  • Inner conductor Bare copper Φ1.02 mm
    Dielectric Foam PE Φ4.60 ± 0.20 mm
    Tape shield(shield 1) Copper foil
    Shield coverage   100%
    Outer conductor(shield 2) Copper 64 x 0.12 mm
    Shield coverage   60%
    Sheath PVC or LSZH Φ6.80 ± 0.20 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 54 pF/m
    Velocity of propagation 83%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 21.7 Ohm/Km
    Outer conductor resistance 24.1Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Cable weight (approx.) 50 Kg/Km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 4.4 1.3
    100 6.1 1.9
    200 9.2 2.8
    500 14.8 4.5
    600 16.0 4.9
    800 19.0 5.8
    1000 20.5 6.2
    1350 23.7 7.2
    1750 27.1 8.3
    2150 29.9 9.1
    2400 31.7 9.7
>
