RH 100

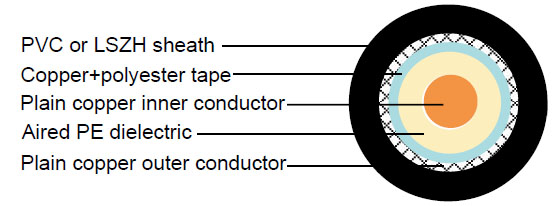

Construction :

  • Inner conductor Plain copper 2.5 mm
    Dielectric Aired PE Φ6.90 ± 0.20 mm
    Outer conductor (shield 1) Copper + polyester tape
    Shield coverage   100%
    Outer conductor (shield 2) Plain copper 96 x 0.12 mm
    Shield coverage   50%
    Sheath PVC or LSZH Φ9.70 ± 0.20 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 80 pF/m
    Velocity of propagation 84%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 3.7 Ohm/Km
    Outer conductor resistance 12.5 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 61.0 Kg/Km
    Cable weight (approx.) 128.4 Kg/Km
    Screening effectiveness >75 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 2.5 0.76
    100 3.6 1.10
    400 7.9 2.41
    600 10.1 3.08
    860 12.1 3.69
    1000 13.2 4.02
    1750 18.7 5.70
    2400 22.2 6.77

Return Loss :

  • 30-300 MHz >25dB
    300-600 MHz >22dB
    600-900 MHz >18dB
>
