19 VATC

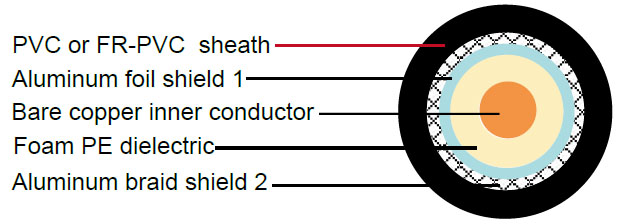

Construction :

  • Inner conductor Bare copper/Copper clad steel(CCS) Φ1.02 mm
    Dielectric Foam PE Φ4.60 mm
    Outer conductor (shield 1) Aluminum Foil Φ4.75 mm
    Shield coverage 1   100%
    Outer conductor (shield 2) Aluminum wire braid (Type 1) 64x0.12 mm
    Shield coverage 2   45%
    Outer conductor (shield 2) Aluminum wire braid (Type 2) 48x0.12 mm
    Shield coverage 2   35%
    Sheath PVC/FR-PVC Φ6.80 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 50 pF/m
    Velocity of propagation 85%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 21.4 Ohm/Km
    Outer conductor resistance - Ohm/Km
    Rated temperature 70°C
    Cable weight (approx.) - kg/km
    Screening effectiveness >70 dB (5-1000MHz)

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 4.6 1.40
    100 7.1 2.16
    200 9.0 2.74
    400 13.0 3.96
    800 19.0 5.79
    950 20.9 6.37
    1350 25.5 7.77
    1750 29.6 9.02
    2150 33.4 10.18
    3000 40.6 12.38

Return Loss :

  • 5-1000 MHz >22dB
    1000-2000 MHz >20dB
>
