CTX 80 FLEX



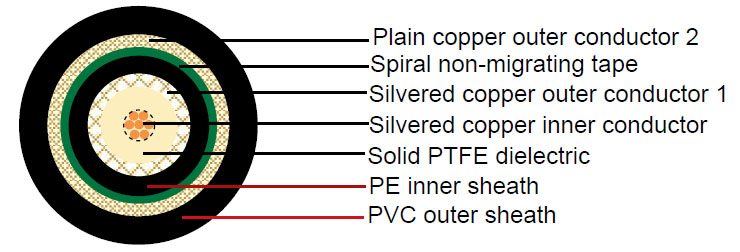

Construction :

  • Inner conductor Silver plated copper 7 x 0,65 mm
    Dielectric Foam PE Φ8.00 ± 0,10 mm
    Outer conductor (shield 1) Silver plated copper 216x 0,15 mm
    Shield coverage   92%
    Inner sheath PE Φ10.00 ± 0,10 mm
    Tape Spiral non-migrating tape h. 27 mm
    Outer conductor (shield 2) Plain copper 216 x 0,18 mm
    Shield coverage   90%
    Outer sheath PVC/LSOH Φ13.00 ± 0,30 mm
  •
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 56 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 8.0 Ohm/Km
    Outer conductor resistance1 5.0 Ohm/Km
    Outer conductor resistance2 3.5 Ohm/Km
    Operating temperature range -30°C - +70 °C
    Copper weight 117.6 Kg/Km
    Cable weight (approx.) 224.35 Kg/Km
    Screening effectiveness >70 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    50 3.4 1.0
    100 5.1 1.6
    200 7.5 2.3
    400 10.9 3.3
    500 12.4 3.8
    600 14.2 4.3
    860 17.0 5.2
    1000 18.8 5.7

Return Loss :

  • 30-300 MHz >30dB
    300-600 MHz >28dB
    600-900 MHz >24dB
>
