Tri-RG393

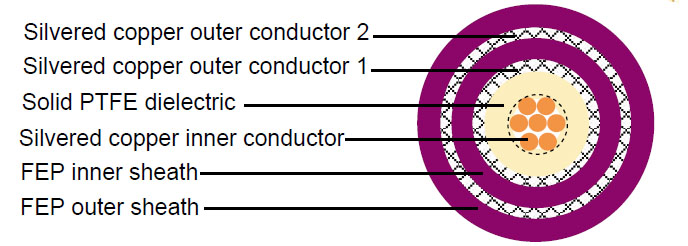

Construction :

  • Inner conductor Silver plated copper 7 x 0.80 mm
    Dielectric Solid PTFE Φ7.25 ± 0.10 mm
    Outer conductor (shield 1) Silver plated copper (0.16mm) Φ7.95 ± 0.10 mm
    Inner sheath FEP Φ9.00 ± 0.10 mm
    Outer conductor (shield 2) Silver plated copper (0.2mm) Φ9.90 ± 0.10 mm
    Outer sheath FEP Φ11.10 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 94 pF/m
    Velocity of propagation 70%
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operatig Voltage(max) 4.4 KV
    Test Voltage
    Operating temperature range -55°C - +200 °C
    Cable weight (approx.) 290 Kg/Km
    Screening effectiveness >60 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    100 7 2.1
    200 10 3.0
    400 14 4.3
    900 22 6.7
    1200 25 7.6
    1500 29 8.8
    1800 32 9.8
    2000 34 10.4
    2500 39 11.9
>
