1xRG59 + 3x12AWG Power Cable + 3x1x2x24 AWG Shield Pairs SWB LSZH Sheathed Composite Cable

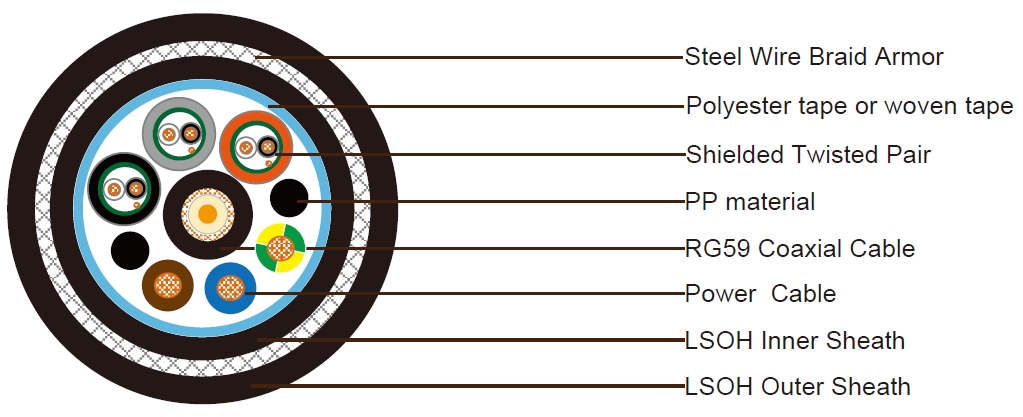

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable(in the center of the cable core)

Conductor 0.58mm Solid coppe rconductor
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 85%
Sheath LSZH sheath. Nominal outer diameter 6.2mm
Sheath Color Black

3x1x2x24/7 AWG Shielded Twisted Pair(around coaxial cable)

Conductor 7/0.2mm
Insulation PVC material. Thickness 0.47mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 24 AWG drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
Sheath Color Black , Grey and Orange

3x3mm^2 Power Cable

Conductor 3.0mm^2 wire
Insulation XLPE. Thickness 0.85mm. Outer diameter 3.65mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PVC or PE material (around coaxial cable)
Wrapping Tape Polyester tape
Inner Sheath Black LSZH, thickness 0.8mm
Armor Steel wire braid,coverage 85%
Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter is 22.0mm
Sheath Color Black

Electrical and Physical Properties@20°C:

Coaxial Cable

  • Max. Electrical Resistance: 158Ohm/km
  • Impedance: 75±3Ohm (@1MHz)

Power Cable

  • Electrical Resistance: 6.6Ohm/km
  • Insulation Resistance: ≥5500 MOhmxkm

Data Pairs

  • Electrical Resistance:90Ohm/km
  • Insulation Resistance: ≥1000 MOhmxkm

Element Assembly

  • Min Bending Radius: 420mm
  • Operating Temperature: -35°C/+80°C

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
