3x2.5 Power Cable + 6C Optical Fibre Cable SWB LSZH Sheathed Composite Cable

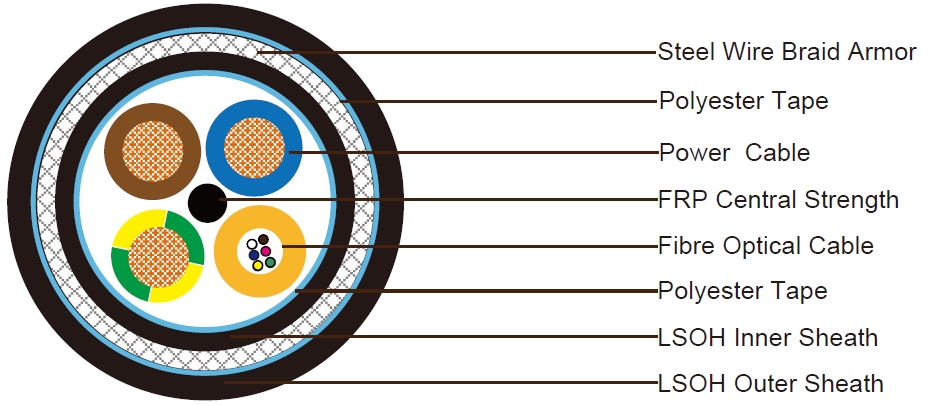

Construction:
3x2.5mm^2 Power Cable(around central member)
| Conductor | 50/0.25mm Stranded bare copper wire |
| Insulation | XLPE. Thickness is 0.86mm. Outer diameter 3.5mm |
| Insulation Color | Blue, Brown and Green/Yellow |
6C Optic Fiber Cable
| No of fibers in loose tube | 6 fibers |
| loose tube | Outer diameter: 3.5mm (PE or PVC Sheathwould be used over the loose tube if necessary) |
Element Assembly
| Wrapping Tape | Ployester tape |
| Inner Sheath | Grey LSZH, thickness 0.8mm |
| Armor | Galvanised steel wire armour, coverage 99% |
| Wrapping Tape | Ployester tape |
| Outer Sheath | LSZH, thickness 1.6mm, norminal outer diameter 16.2mm |
| Sheath Color | Grey |
Optical Characteristics:
Optical Fiber
Table 1. SM
| Property | Requirement |
| Optical properties | |
| Attenuation @ 1310 nm | 0.35 dB/km |
| Attenuation @ 1550 nm | 0.22 dB/km |
| Point Discontinuity | 0.1 dB @ 1310 or 1550 nm |
| Chromatic Dispersion slope: | 0.092 ps/km/nm2 |
| Zero Chromatic Dispersion Wavelength: | 1300 - 1324 nm |
| Mode Field Diameter @ 1300 nm | 9.3 0.5m |
| Mode Field Diameter @ 1550 nm | 10.51.0m |
| Fiber Cut-Off Wavelength | 1260 70 nm |
| Cable Cut-Off Wavelength | 1260 nm |
| Geometrical properties | |
| Cladding Diameter: | 125 1.0 m |
| Core-Cladding Offset | 0.8 m |
| Cladding Non-Circularity: | 1.0 % |
| Colored Coating Diameter: | 250 10m |
| Coating / Cladding Offset: | 12m |
| Mechanical properties | |
| Proof Test: | 0.7 GN/m2 for 1 second |
Table 2. MM
| Property | 50/125 fibers | 62.5/125 fibers |
| Attenuation @ 850 nm (dB/ km) | ≤3.0 | ≤3.2 |
| Attenuation @ 1300 nm (dB/ km) | ≤1.0 | ≤1.2 |
| Added Attenuation with Bending | ≤0.5 dB (850 and 1300 nm for 100 turns around a 75 mm mandrel | |
| Numerical Aperture | 0.20±0.02 | 0.275±0.015 |
| Bandwidth @ 850 nm | 400 MHz*km | 160 MHz*km |
| Bandwidth @ 1300 nm | 800 MHz*km | 500 MHz*km |
| Core diameter | 50 ±3 μm | 62.5±3 μm |
| Cladding diameter | 125±2 μm | |
| Core-Claddingoffset | ≤6% | |
| Cladding non-circularity | ≤2% | |
| Core non-circularity | ≤6% | |
| Coating diameter | 245± 10 μm | |
| Coating / Cladding offset | 12 μm | |
| Proof Test | ≥0.69 GN/m2 (100 kpsi) | |
Electrical and Physical Properties @20°C:
- Max. Electrical Resistance: 7.98Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
- Dielectric Strength: 1500V/1'
Physical Characteristic:
- Min Bending Radius: 240mm
- Operating Temperature: -35°C/+80°C
Fire Characteristics
- Flame Propagation: IEC60332-1
- Low Smoke Capacity: IEC61034-1/2
- Halogen Free: IEC60754-1/2
