Category 5 Multipair Cables

Applications :

10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM

Standards :

  • ISO/IEC 11801
  • ANSI/TIA/EIA-568-B

Product Construction Matrix :

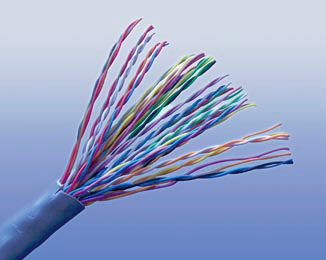

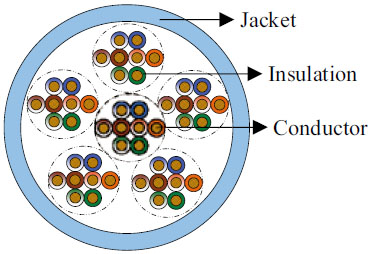

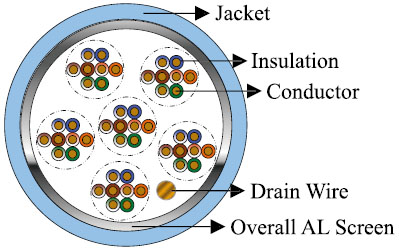

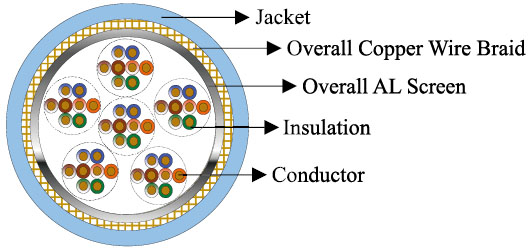

    U/UTP F/UTP SF/UTP
Conductor Material Solid Plain Copper Solid Plain Copper Solid Plain Copper
Stranding( No./mm ) 1/0.5 1/0.5 1/0.5
Gauge 24AWG 24AWG 24AWG
Insulation Material PE PE PE
Diameter 0.86 mm 0.86 mm 0.86 mm
Screen Material Nil Overall Aluminum Tape Screen Overall Aluminum Tape Screen & Copper Wire Braid
Drain Wire Material Nil 1/0.5 mm 1/0.5 mm
Assembly No of Pairs 25/50/100 25/50/100 25/50/100
Jacket Material PE/PVC/LSF/LSZH PE/PVC/LSF/LSZH PE/PVC/LSF/LSZH

Remark : PE-Polyethylene; PVC-Polyvinyl Chloride; LSF-Low Smoke & Fume; LSZH-Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP

Working Frequency :

1 - 100 MHz



Cat5 U/UTP Cat5 F/UTP Cat5 SF/UTP
Cat5 U/UTP Cat5 F/UTP Cat5 SF/UTP

Technical Parameters :

Characteristic Impedance: 100±15Ω
Nominal Velocity of Propagation (NVP): 69%
Maximum Mutual Capacitance: 5.6 nF/100m
Maximum Capacitance Unbalance: 330 pF/100m
Maximum DC Resistance: 9.38Ω/100m
Maximum Resistance Unbalance: 5%
Maximum Propagation Delay Skew: 30 ns/100m
Maximum Propagation Delay: 536 ns/100m@100 MHz
Minimum Bending Radius: 10 x Overall Diameter
Voltage Rating: 60V rms
Maximum Pulling Load: 80N
Working Temperature: -20℃ ~ +60℃
Storage Temperature: -5℃ ~ +50℃
Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket); IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

Product Certification :

E222756

Product Highlights :

  • Provide excellent bandwidth beyond 100 MHz.
  • Designed for use in data and voice backbone application.
  • Meet the strict flame retardancy and environmental requirements in Europe and US.
  • Easily identifiable color code for ease of installation.

Transmission Properties :

FREQ NEXT(dB/100m) IL SRL (dB/100m)
(MHz) Minimum Value/Typical Value/Standard Value (dB/100m) Minimum Value/Typical Value/Standard Value
1 64.0/71.0/62.0 2.0 24.5/26.0/23.0
4 55.0/62.0/53.0 4.0 24.5/26.0/23.0
8 49.5/57.0/48.0 5.7 24.5/26.0/23.0
10 49.0/56.0/47.0 6.4 24.5/26.0/23.0
16 44.9/52.0/44.0 8.2 24.5/26.0/23.0
20 42.5/48.0/42.0 9.2 24.5/26.0/23.0
25 42.0/48.0/41.0 10.3 24.5/26.0/23.0
31.25 40.6/48.0/39.0 11.6 22.5/24.0/21.0
62.5 36.1/43.0/35.0 16.9 19.5/22.0/18.0
100 34.0/40.0/32.0 21.8 17.5/20.0/16.0
