PE Insulated, PVC Sheathed & CWB Screened Instrumentation Cables (Single Pair)

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

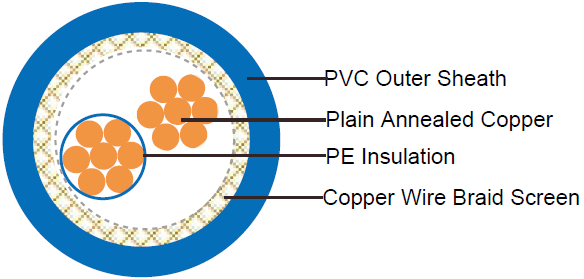

CABLE CONSTRUCTION

  • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
  • Insulation: PE compound as per EN 50290. 2-23.
  • Pair:Two conductors twisted to form a pair
  • Lay-up: Pairs laid up in layers of optimum pitch
  • Separator: Polyester tape
  • Overall Screen: Tinned copper wire braid
  • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

  • Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
  • Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

  • Temperature Range During Operation (Fixed State): -30°C – +70°C
  • Temperature Range During Installation (Mobile State): -5°C – +50°C
  • Minimum Bending Radius: 7.5 X Overall Diameter
  • Sunlight Resistance: UL 1581 section 1200
  • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

CONDUCTOR AREA SIZE MM2 0.5 0.75 1.0 1.3 1.5
INSULATION THICKNESS (NOMINAL) MM 0.4 0.4 0.4 0.45 0.45
CONDUCTOR RESISTANCE (20°C) Ω/KM 36.7 25 18.5 14.2 12.3
INSULATION RESISTANCE (20°C) MΩ.KM(MIN.) 5000
MUTUAL CAPACITANCE (1 KHZ) PF/M(MAX.) 115
CAPACITANCE UNBALANCE(1 KHZ) PF/500 M (MAX.) 300
L / R (RATIO) (MAX.) ΜH/Ω 25 25 25 40 40
OPERATING VOLTAGE URMS V 300
TEST VOLTAGE CORE TO CORE V 1500
CORE TO SCREEN V 1500

CONSTRUCTION PARAMETERS

CALEDONIAN CABLE CODE RE-2Y(C)Y
NO. OF PAIRS X 2 X CROSS SECTION COPPER WEIGHT APPROX. WEIGHT
? NO.X2XMM2 KG/KM KG/KM
RE-2Y(C)Y 1P0.5 1x2x0.50 8.3 110
RE-2Y(C)Y 1P0.75 1x2x0.75 8.7 119
RE-2Y(C)Y 1P1.0 1x2x1.0 9.4 135
RE-2Y(C)Y 1P1.3 1x2x1.3 9.7 140

Note : Other conductor sizes & core configurations are available upon request.
