Breakout PVC Jacketed Cable

     Application

Breakout Cable is designed for routing to different locations and direct termination of fi bers in the fi eld. The cable is mostly suitable for pre-terminated cable assemblies.

    Description

The cable contains 2 to 36 fi bers which are individually buffered tight or semi-tight construction. Each fi ber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or fl exible all-dielectric. Outer Jacket may be PVC or LSZH.

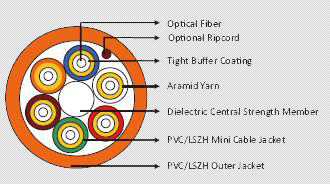

     Construction

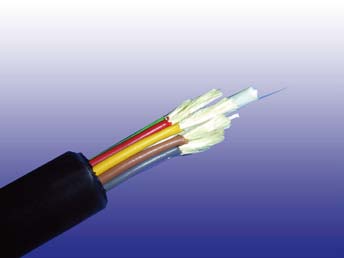

Fiber Optic Cable
Fiber Optic Cable

    Physical Properties

Fiber Count

Nominal Weight(kg/km)

Nominal Weight(lb/kft)

Nominal Outer Diameter(mm)

Nominal Outer Diameter(in)

Maximum Pulling Load

Installation(N/Ib)

In Service(N/Ib)

2

50.0

33.56

5.5

0.217

1200/270

490/100

6

110.0

73.83

12.5

0.493

2000/450

800/180

12

160.0

107.38

13.0

0.512

3515/790

1200/270

24

230.0

154.36

15.5

0.611

5470/1230

2000/450

    Mechanical Properities

Minimum Bending Radius:   Maximum Compressive Load: 3000N for unarmoured
Under installation: 20×OD   5000N for armoured
During operation 10×OD for unarmoured cables Repeated Impact: 2.9 N.m (J) 3×2 impacts
  10×OD for unarmoured cables Twist (Torsion): 180×10 times, 125×OD
Temperature Range:   Cyclic Flexing: 25 cycles for armoured cables.
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉)   100 cycles for unarmoured cables.
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉) Crush Resistance: 1750N/cm (1000lb/in)

     Fiber Compliance

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

    Safety Compliance

General Purpose Grade

Flammability Test: OFN (UL1581)

Riser Grade

Flammability Test: OFNR/FT4 (UL1666)

Plenum Grade

Flammability Test: OFNP/FT6 (UL 910)

FRPVC Grade

Flammability Test: IEC60332-1

LSZH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

LSFROH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A

FR Grade

Fire Resistance Test : IEC 60331 / BS 6387 CWZ

    Standard Compliance

        GR409-CORE                                    TIA/EIA 568B.3                            ICEA-S - 83-596

    Features

• Most rugged and "user friendly" cable design for Local Area Networks
• For installations where ease of termination and termination costs are important factors
• Short and moderate distance links between buildings or within a building, where multiple termination points are needed
• Breakout cables are designed for direct termination with standard connectors
• Cable ideal for direct pulling with wire mesh grips
• Suitable for both indoor and outdoor use -- no need to for splicing at the building entrance
• Flame-retardant or LSZH version for indoor installations
• Fungus-resistant, water-resistant, and UV-resistant for outdoor use
• High quality tight-buffered coating on each fi ber for environmental and mechanical protection
