LSZH Flame Retardant Individual and Overall Screened Instrumentation Cables (Multipair)

RE-2X(St)H PiMF

APPLICATION

The unarmoured LSZH sheathed cables are generally used for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

VOLTAGE RATING

300V, 500V

  • LSZH Flame Retardant Individual and Overall Screened Instrumentation Cable
  • RE-2X(St)H PiMF

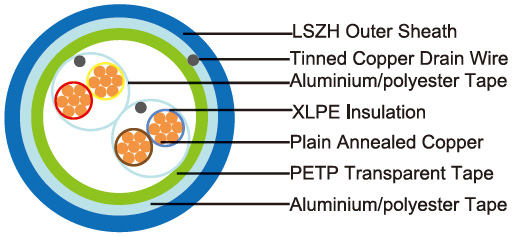

CABLE CONSTRUCTION

Conductor : Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.

Insulation : Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.

Pairs : Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm²) or 150mm (for 2.5mm²).

Individual Screen : Aluminium/polyester tape is applied over each pair with metallic side down in contact with tinned copper drain wire, 0.5mm².

Binder tape : PETP transparent tape.

Overall Screen : Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.

Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).

Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour : Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.

Outer Sheath : Black. Other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation : -30°C - +90°C

Temperature range fixed installation : -5°C - +50°C

Maximum short circuit temperature (5 Seconds) : 250°C

Minimum bending radius : 7.5 x Overall Diameter

ELECTRICAL PROPERTIES

300V

Conductor Area Size mm² 0.5 0.75 1.0 1.5
Insulation Thickness (nominal) mm 0.4 0.4 0.4 0.5
Insulation Thickness (minimum) mm 0.26 0.26 0.26 0.35
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40
Operating Voltage V 300
Dielectric Strength for 1 Minute AC V ≥1000
DC V ≥2000

500V

Conductor Area Size mm² 0.5 0.75 1.0 1.5 2.5
Insulation Thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation Thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40 60
Operating Voltage V 500
Dielectric Strength for 1 Minute AC V ≥2000
DC V ≥3000

CONSTRUCTION PARAMETERS

300V

Conductor RE-2X(St)H PiMF
No. of Pairs X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
mm²   mm mm mm kg/km
0.5mm²
2x2x0.5 2 0.4 1.0 8.6 94
3x2x0.5 2 0.4 1.0 9.0 117
4x2x0.5 2 0.4 1.1 10.1 150
5x2x0.5 2 0.4 1.1 11.0 177
8x2x0.5 2 0.4 1.1 12.9 253
10x2x0.5 2 0.4 1.2 15.3 319
12x2x0.5 2 0.4 1.2 15.8 364
16x2x0.5 2 0.4 1.3 17.7 471
20x2x0.5 2 0.4 1.4 19.4 577
24x2x0.5 2 0.4 1.5 22.3 698
0.75mm²
2x2x0.75 2 0.4 1.0 9.2 109
3x2x0.75 2 0.4 1.1 9.9 145
4x2x0.75 2 0.4 1.1 10.8 178
5x2x0.75 2 0.4 1.2 12.0 219
8x2x0.75 2 0.4 1.2 14.1 315
10x2x0.75 2 0.4 1.3 16.8 398
12x2x0.75 2 0.4 1.3 17.3 455
16x2x0.75 2 0.4 1.4 19.4 588
20x2x0.75 2 0.4 1.5 21.2 721
24x2x0.75 2 0.4 1.5 24.2 855
1.0mm²
2x2x1.0 2 0.4 1.0 9.9 130
3x2x1.0 2 0.4 1.1 10.7 175
4x2x1.0 2 0.4 1.2 12.0 224
5x2x1.0 2 0.4 1.2 13.1 267
8x2x1.0 2 0.4 1.2 15.4 387
10x2x1.0 2 0.4 1.3 18.3 489
12x2x1.0 2 0.4 1.4 19.1 573
16x2x1.0 2 0.4 1.5 21.4 742
20x2x1.0 2 0.4 1.5 23.2 896
24x2x1.0 2 0.4 1.6 26.6 1081
1.5mm²
2x2x1.5 2 0.5 1.1 11.8 177
3x2x1.5 2 0.5 1.2 12.7 238
4x2x1.5 2 0.5 1.2 14.0 296
5x2x1.5 2 0.5 1.3 15.5 364
8x2x1.5 2 0.5 1.3 18.3 532
10x2x1.5 2 0.5 1.4 21.8 670
12x2x1.5 2 0.5 1.5 22.8 787
16x2x1.5 2 0.5 1.6 25.5 1020
20x2x1.5 2 0.5 1.7 27.9 1251
24x2x1.5 2 0.5 1.8 32.1 1507

500V

Conductor RE-2X(St)H PiMF
No. of Pairs X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
mm²   mm mm mm kg/km
0.5mm²
2x2x0.5 2 0.6 1.0 10.0 110
3x2x0.5 2 0.6 1.1 10.8 145
4x2x0.5 2 0.6 1.1 11.8 177
5x2x0.5 2 0.6 1.2 13.1 217
8x2x0.5 2 0.6 1.2 15.4 308
10x2x0.5 2 0.6 1.3 18.4 389
12x2x0.5 2 0.6 1.4 19.2 454
16x2x0.5 2 0.6 1.5 21.5 583
20x2x0.5 2 0.6 1.5 23.3 697
24x2x0.5 2 0.6 1.6 26.7 842
0.75mm²
2x2x0.75 2 0.6 1.1 10.8 133
3x2x0.75 2 0.6 1.1 11.5 168
4x2x0.75 2 0.6 1.2 12.8 214
5x2x0.75 2 0.6 1.2 14.0 254
8x2x0.75 2 0.6 1.3 16.7 375
10x2x0.75 2 0.6 1.4 19.8 473
12x2x0.75 2 0.6 1.4 20.5 539
16x2x0.75 2 0.6 1.5 23.0 694
20x2x0.75 2 0.6 1.6 25.1 849
24x2x0.75 2 0.6 1.7 28.9 1024
1.0mm²
2x2x1.0 2 0.6 1.1 11.6 155
3x2x1.0 2 0.6 1.2 12.5 206
4x2x1.0 2 0.6 1.2 13.7 254
5x2x1.0 2 0.6 1.3 15.2 312
8x2x1.0 2 0.6 1.3 17.9 450
10x2x1.0 2 0.6 1.4 21.3 568
12x2x1.0 2 0.6 1.5 22.2 664
16x2x1.0 2 0.6 1.6 25.0 857
20x2x1.0 2 0.6 1.7 27.2 1048
24x2x1.0 2 0.6 1.8 31.3 1263
1.5mm²
2x2x1.5 2 0.6 1.1 12.5 187
3x2x1.5 2 0.6 1.2 13.5 251
4x2x1.5 2 0.6 1.3 15.0 321
5x2x1.5 2 0.6 1.3 16.5 384
8x2x1.5 2 0.6 1.4 19.7 573
10x2x1.5 2 0.6 1.5 23.5 721
12x2x1.5 2 0.6 1.6 24.4 845
16x2x1.5 2 0.6 1.7 27.4 1092
20x2x1.5 2 0.6 1.8 29.9 1337
24x2x1.5 2 0.6 1.9 34.4 1609
2.5mm²
2x2x2.5 2 0.7 1.2 14.9 263
3x2x2.5 2 0.7 1.3 16.1 357
4x2x2.5 2 0.7 1.4 17.9 457
5x2x2.5 2 0.7 1.5 19.9 562
8x2x2.5 2 0.7 1.6 23.8 840
10x2x2.5 2 0.7 1.7 28.3 1055
12x2x2.5 2 0.7 1.8 29.4 1235
16x2x2.5 2 0.7 1.9 33.0 1598
20x2x2.5 2 0.7 2.1 36.2 1980
24x2x2.5 2 0.7 2.2 41.6 2380
