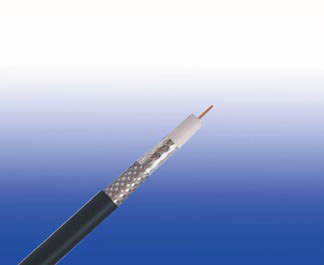

Fire resistant RG6 A/U Coaxial Cables

RG6 A/U FR

Application

The cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this cable is ideal for use in public, commercial and industrial environments.

Standards

  • Basic design to MIL-C-17

Fire Performance

Circuit Integrity IEC 60331-23
Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034-1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

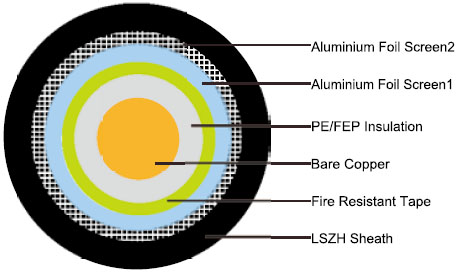

Cable Construction

Fire resistant RG6 A/U Coaxial Cables RG6 A/U FR
Conductors Bare copper copper wire, solid according to IEC 60228 class 1
Insulation PE or fluoropolymer(FEP) compound
Fire Barrier Fire resistant tape wrapped around the cable core
Binder Glass tape
Overall screen 1 Aluminium foil
Overall screen 2 Aluminium foil
Sheath Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

Physical And Thermal Properties

Temperature range during operation (fixed state) -30°C – +70°C
Temperature range during installation (mobile state) -5oC - +60oC
Minimum bending radius 8 x Overall Diameter

Electrical Properties

Impedance 75±5Ω
Capacitance 5.4 N F/100M
Velocity ratio 66%
Insulation resistance >5000 MΩ.Km
Shield coverage 1 97%
Shield coverage 2 95%
DC resistance Inner conductor 10.6 Ω/100m
  Outer conductor 9.0 Ω/100m

Attenuation

Frequency Attenuation Attenuation
MHz dB/100m dB/100ft
50 5.8 1.77
100 8.5 2.59
200 12.5 3.81
400 18.0 5.49
500 20.3 6.19
600 22.6 6.89
860 27.5 8.38
1000 30.4 9.27

Return Loss

Frequency Return Loss
MHz dB
30-300 >28
300-600 >24
600-900 >22

Construction Parameters

Cable Code Conductor Diameter Nominal Insulation Diameter Nominal Screen No.x Diameter Nominal Overall Diameter Approx. Weight
mm mm No. x mm mm kg/km
RG 6/U FR 0.72 4.70 ± 0.10 144 x 0.16 8.50 ± 0.10 64.6
