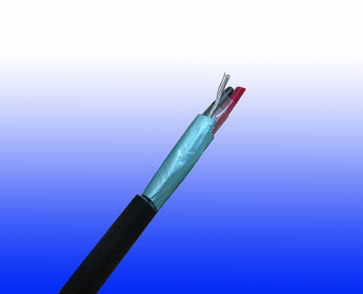

Fire Resistant RS485 Databus Cables
APPLICATION
The cables are designed for RS485 data connections where continued functionality is required during a fire situation. This cable combines low capacitance insulation with one of the highest levels of screening to provide high speed, interference free, data transmission where continued functionality is required during a fire situation.
STANDARDS
- Basic design to EIA/TIA 485
FIRE PERFORMANCE
| Circuit Integrity |
IEC 60331-23 |
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

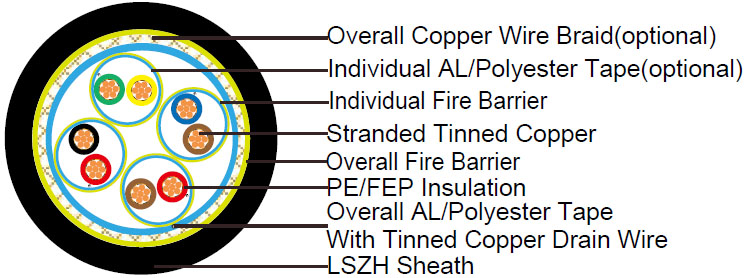

CABLE CONSTRUCTION
Multipair RS 485 Overall Screened Databus Cable
| Conductors |
Bare or tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
PE or fluoropolymer(FEP) compound |
| Individual Fire Barrier |
Fire resistant tape wrapped around the individual pairs or core assembly |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation |
| Cabling |
Pairs are cabled together in concentric layers |
| Overall screen |
Aluminum/polyester tape with tinned copper drain wire |
| Overall Fire Barrier |
Fire resistant tape wrapped core assembly |
| Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
Multipair RS 485 Overall Double Screened Databus Cable
| Conductors |
Bare or tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
PE or fluoropolymer(FEP) compound |
| Fire Barrier |
Fire resistant tape wrapped around the individual pairs or core assembly |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation |
| Cabling |
Pairs are cabled together in concentric layers |
| Overall screen |
Aluminium/polyester tape plus copper wire braid |
| Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
Multipair RS 485 Individual & Overall screened Databus Cable
| Conductors |
Bare or tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
PE or fluoropolymer(FEP) compound |
| Fire Barrier |
Fire resistant tape wrapped around the individual pairs or core assembly |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation |
| Cabling |
Pairs are cabled together in concentric layers |
| Overall screen |
Copper wire braid |
| Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
Multipair RS 485 Overall Screened Databus Cable
| Conductors |
Bare or tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
PE or fluoropolymer(FEP) compound |
| Fire Barrier |
Fire resistant tape wrapped around the individual pairs or core assembly |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation |
| Cabling |
Pairs are cabled together in concentric layers |
| Overall screen |
Copper wire braid |
| Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.) . UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) |
-20°C – +90°C |
| Temperature range during installation (mobile state) |
-5°C - +60°C |
| Minimum bending radius |
8 x Overall Diameter |
ELECTRICAL PROPERTIES
| DIELECTRIC TEST |
1000 V r.m.s. for 5’ (core-core) |
| |
1000 V r.m.s. for 5’ (core-screen) |
| IMPEDANCE |
120 Ω |
| CAPACITANCE |
45 NF/km conductor to conductor |
| |
90 NF/km conductor to shield |
CONSTRUCTION PARAMETERS
Multipair RS 485 Overall Screened Databus Cable
RE-m02Y(St)H-FR / RE-m02YS (St)H-FR / RE-m6YS (St)H-FR
| AWG |
No.of pair x2× Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
mm2 |
No/mm |
mm |
mm |
mm |
kg/km |
| 24AWG |
1×2×0.22 |
7/0.2 |
0.6 |
0.40 |
4.6 |
29 |
| 24AWG |
2×2×0.22 |
7/0.2 |
0.6 |
0.40 |
8.1 |
60 |
| 24AWG |
4×2×0.22 |
7/0.2 |
0.6 |
0.40 |
9.6 |
100 |
| 22AWG |
1×2×0.50 |
16/0.2 |
0.8 |
0.50 |
5.2 |
44 |
| 22AWG |
2×2×0.50 |
16/0.2 |
0.8 |
0.50 |
9.3 |
91 |
| 22AWG |
4×2×0.50 |
16/0.2 |
0.8 |
0.50 |
11.1 |
158 |
| 18AWG |
1×2×0.75 |
24/0.2 |
1.0 |
0.60 |
5.6 |
56 |
| 18AWG |
2×2×0.75 |
24/0.2 |
1.0 |
0.60 |
10.3 |
117 |
| 18AWG |
4×2×0.75 |
24/0.2 |
1.0 |
0.60 |
12.2 |
207 |
| 16AWG |
1×2×1.00 |
30/0.2 |
1.2 |
0.80 |
5.8 |
61.4 |
| 16AWG |
2×2×1.00 |
30/0.2 |
1.2 |
0.80 |
10.6 |
128 |
| 16AWG |
4×2×1.00 |
30/0.2 |
1.2 |
0.80 |
12.5 |
228 |
Multipair RS 485 Overall Double Screened Databus Cable
RE-m02Y(St)CH-FR / RE-m02YS (St)CH-FR/ RE-m6YS (St)CH-FR
| AWG |
No.of pair x2× Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
mm2 |
No/mm |
mm |
mm |
mm |
kg/km |
| 24AWG |
1×2×0.22 |
7/0.2 |
0.6 |
0.40 |
5.0 |
45 |
| 24AWG |
2×2×0.22 |
7/0.2 |
0.6 |
0.40 |
8.6 |
88 |
| 24AWG |
4×2×0.22 |
7/0.2 |
0.6 |
0.40 |
10.1 |
134 |
| 22AWG |
1×2×0.50 |
16/0.2 |
0.8 |
0.50 |
5.6 |
61 |
| 22AWG |
2×2×0.50 |
16/0.2 |
0.8 |
0.50 |
9.8 |
124 |
| 22AWG |
4×2×0.50 |
16/0.2 |
0.8 |
0.50 |
11.5 |
197 |
| 18AWG |
1×2×0.75 |
24/0.2 |
1.0 |
0.60 |
6.1 |
75 |
| 18AWG |
2×2×0.75 |
24/0.2 |
1.0 |
0.60 |
10.7 |
154 |
| 18AWG |
4×2×0.75 |
24/0.2 |
1.0 |
0.60 |
12.7 |
250 |
| 16AWG |
1×2×1.00 |
32/0.2 |
1.2 |
0.80 |
6.3 |
81 |
| 16AWG |
2×2×1.00 |
32/0.2 |
1.2 |
0.80 |
11.0 |
166 |
| 16AWG |
4×2×1.00 |
32/0.2 |
1.2 |
0.80 |
13.0 |
273 |
Multipair RS 485 Individual & Overall screened Databus Cable
RE-m02Y(St)H pimf-FR / RE-m02YS (St)H pimf -FR / RE-m6YS (St)H pimf-FR
| AWG |
No.of pair x2× Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
|
mm2 |
No/mm |
mm |
mm |
mm |
kg/km |
| 24AWG |
1×2×0.22 |
7/0.2 |
0.6 |
0.40 |
4.9 |
46 |
| 24AWG |
2×2×0.22 |
7/0.2 |
0.6 |
0.40 |
8.6 |
91 |
| 24AWG |
4×2×0.22 |
7/0.2 |
0.6 |
0.40 |
10.1 |
144 |
| 22AWG |
1×2×0.50 |
16/0.2 |
0.8 |
0.50 |
5.5 |
62 |
| 22AWG |
2×2×0.50 |
16/0.2 |
0.8 |
0.50 |
9.8 |
127 |
| 22AWG |
4×2×0.50 |
16/0.2 |
0.8 |
0.50 |
11.6 |
209 |
| 18AWG |
1×2×0.75 |
24/0.2 |
1.0 |
0.60 |
6.0 |
76 |
| 18AWG |
2×2×0.75 |
24/0.2 |
1.0 |
0.60 |
10.7 |
157 |
| 18AWG |
4×2×0.75 |
24/0.2 |
1.0 |
0.60 |
12.7 |
263 |
| 16AWG |
1×2×1.00 |
32/0.2 |
1.2 |
0.80 |
6.2 |
83 |
| 16AWG |
2×2×1.00 |
32/0.2 |
1.2 |
0.80 |
11.0 |
170 |
| 16AWG |
4×2×1.00 |
32/0.2 |
1.2 |
0.80 |
13.0 |
286 |
Multipair RS 485 Overall Screened Databus Cable
RE-m02YCH-FR / RE-m02YS CH-FR/ RE-m6YS CH-FR
| AWG |
No.of pair x2× Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
mm2 |
No/mm |
mm |
mm |
mm |
kg/km |
| 24AWG |
1×2×0.22 |
7/0.2 |
0.6 |
0.40 |
4.8 |
41 |
| 24AWG |
2×2×0.22 |
7/0.2 |
0.6 |
0.40 |
8.4 |
82 |
| 24AWG |
4×2×0.22 |
7/0.2 |
0.6 |
0.40 |
9.9 |
127 |
| 22AWG |
1×2×0.50 |
16/0.2 |
0.8 |
0.50 |
5.4 |
57 |
| 22AWG |
2×2×0.50 |
16/0.2 |
0.8 |
0.50 |
9.6 |
117 |
| 22AWG |
4×2×0.50 |
16/0.2 |
0.8 |
0.50 |
11.4 |
189 |
| 18AWG |
1×2×0.75 |
24/0.2 |
1.0 |
0.60 |
5.9 |
71 |
| 18AWG |
2×2×0.75 |
24/0.2 |
1.0 |
0.60 |
10.5 |
146 |
| 18AWG |
4×2×0.75 |
24/0.2 |
1.0 |
0.60 |
12.4 |
241 |
| 16AWG |
1×2×1.00 |
32/0.2 |
1.2 |
0.80 |
6.0 |
77 |
| 16AWG |
2×2×1.00 |
32/0.2 |
1.2 |
0.80 |
10.8 |
158 |
| 16AWG |
4×2×1.00 |
32/0.2 |
1.2 |
0.80 |
12.8 |
264 |
