Flame Retardant CAT5E CWB/SWB/SWA Armoured Data Cables

FGD-CAT5E U/UTP4P24LH CWB/SWB/SWA

FGD-CAT5E F/UTP4P24LH CWB/SWB/SWA

FGD-CAT5E SF/UTP4P24LH CWB/SWB/SWA

APPLICATION

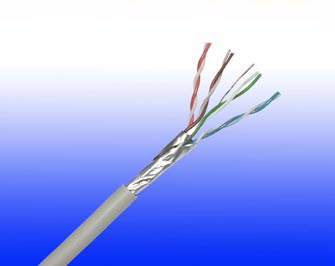

Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

../../Flame Retardant PVC Sheathed Cables (FIREGUARD)/Flame Retardant Data & Databus Cables/images/Flame Retardant CAT5E CWB/SWB/SWA Armoured Data Cables.jpg ../../Flame Retardant PVC Sheathed Cables (FIREGUARD)/Flame Retardant Data & Databus Cables/images/CAT5E CWB/SWB/SWA Armoured Data Cables.jpg

STANDARDS

  • Basic design adapted to EN50173

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING

60V

CABLE CONSTRUCTION

Conductors 24AWG solid bare copper
Insulation HDPE
Twinning Two coloured insulated conductors twisted together to form a pair
Inner Sheath Flame retardant, low smoke and halogen-free polyolefin, coloured black
Armouring CWB: Copper Wire Braid
SWB : Steel Wire Braid
SWA: Steel Wire Armour
Outer Sheath Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request

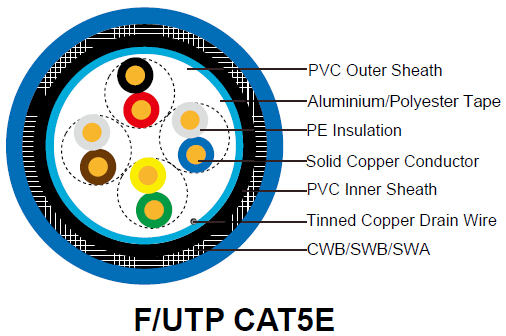

Cat5E F/UTP These cables have collective shielding of aluminium/Polyester tape with drain wire

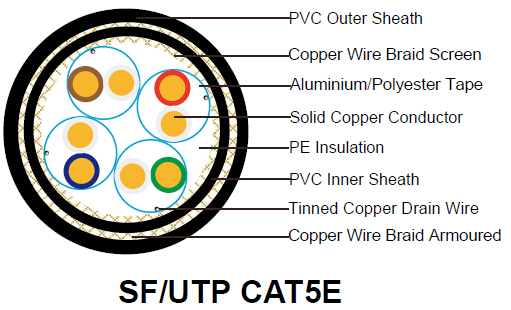

Cat5E SF/UTP These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid

PHYSICAL AND THERMAL PROPERTIES

Temperature range -30°C – +75°C
Minimum bending radius during installation (mobile state) 8 x Overall Diameter
Minimum bending radius during operation (fixed state) 4 x Overall Diameter

ELECTRICAL PROPERTIES

AWG 24
Nominal Conductor Diameter mm 0.5/0.53
Maximum DC Resistant@20°C Ω/100m 9.38
Maximum DCR Unbalance % 5
Maximum Mutual Capacitance pF/m 55.8
Maximum Capacitance Unbalance pF/100m 330
Characteristic Impedance@1-100MHz Ω 100±15
Maximum Propagation Delay Skew ns/100m 45

TRANSMISSION PROPERTIES

FREQ Maximum Attenuation Minimum NEXT Minimum PSNEXT Minimum ELFEXT Minimum PSELFEXT MinimumRL
MHz dB/100m dB dB dB/100m dB/100m dB
0.772 1.8 67.0 64.0 66.0 63.0
1 2.0 65.3 62.3 63.8 60.8 20.0
4 4.1 56.3 53.3 51.7 48.7 23.0
8 5.8 51.8 48.8 45.7 42.7 24.5
10 6.5 50.3 47.3 43.8 40.8 25.0
16 8.2 47.3 44.3 39.7 36.7 25.0
20 9.3 45.8 42.8 37.7 34.7 25.0
25 10.4 44.3 41.3 35.8 32.8 24.3
31.25 11.7 42.9 39.9 33.9 30.9 23.6
62.5 17.0 38.4 35.4 27.8 24.8 21.5
100 22.0 35.3 32.3 23.8 20.8 20.1
../../Flame Retardant PVC Sheathed Cables (FIREGUARD)/Flame Retardant Data & Databus Cables/images/F-UTP CAT5E-2.jpg ../../Flame Retardant PVC Sheathed Cables (FIREGUARD)/Flame Retardant Data & Databus Cables/images/SF-UTP CAT5E-2.jpg

CONSTRUCTION PARAMETERS

Cable Code Construction No. of elements ×No. of cores in element ×Conductor diameter Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter NominalWeight
mm mm mm mm mm kg/km
FGD-CAT5 U/UTP CWB 4×2×0.5 0.2 0.6 1.0 7.68 97
FGD-CAT5 U/UTP SWB 4×2×0.5 0.2 0.6 1.0 7.68 93
FGD-CAT5 U/UTP SWA 4×2×0.5 0.2 0.6 1.0 8.68 165
FGD-CAT5 F/UTP CWB 4×2×0.53 0.2 0.6 1.0 8.28 116
FGD-CAT5 F/UTP SWB 4×2×0.53 0.2 0.6 1.0 8.28 112
FGD-CAT5 F/UTP SWA 4×2×0.53 0.2 0.6 1.0 9.28 192
FGD-CAT5 SF/UTP CWB 4×2×0.53 0.2 0.6 1.0 8.76 123
FGD-CAT5 SF/UTP SWB 4×2×0.53 0.2 0.6 1.0 8.76 119
FGD-CAT5 SF/UTP SWA 4×2×0.53 0.2 0.6 1.0 9.76 216
