Flame Retardant CAT5e Data Cables
FGD-CAT5e U/UTP4P24
FGD-CAT5e F/UTP4P24
FGD-CAT5e SF/UTP4P24
APPLICATION
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
STANDARDS
- Basic design adapted to EN50173
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
VOLTAGE RATING
110V
CABLE CONSTRUCTION
| Conductors |

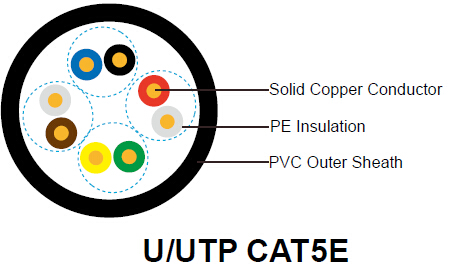

24AWG solid bare copper |
| Insulation |
HDPE |
| Twinning |
Two coloured insulated conductors twisted together to form a pair |
| Outer Sheath |
Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request |

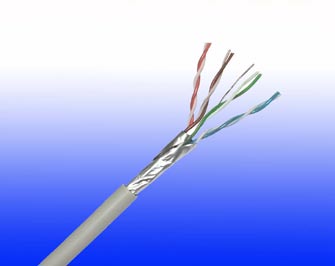

| Cat5E F/UTP |
These cables have collective shielding of aluminium/Polyester tape with drain wire |
| Cat5E SF/UTP |

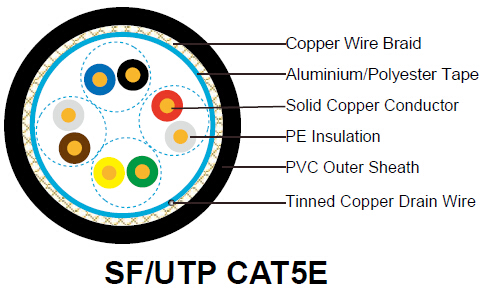

These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range |
-30°C – +75°C |
| Minimum bending radius during installation (mobile state) |
8 x Overall Diameter |
| Minimum bending radius during operation (fixed state) |
4 x Overall Diameter |
ELECTRICAL PROPERTIES
| AWG |
|
24 |
| Nominal Conductor Diameter |
mm |
0.5/0.51/0.53 |
| Maximum DC Resistant@20°C |
Ω/100m |
9.38 |
| Maximum DCR Unbalance |
% |
5 |
| Maximum Mutual Capacitance |
pF/m |
55.8 |
| Maximum Capacitance Unbalance |
pF/100m |
330 |
| Characteristic Impedance@1-100MHz |
Ω |
100±15 |
| Maximum Propagation Delay Skew |
ns/100m |
45 |
TRANSMISSION PROPERTIES
| FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT |
Minimum PSELFEXT |
MinimumRL |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
| 0.772 |
1.8 |
67.0 |
64.0 |
66.0 |
63.0 |
— |
| 1 |
2.0 |
65.3 |
62.3 |
63.8 |
60.8 |
20.0 |
| 4 |
4.1 |
56.3 |
53.3 |
51.7 |
48.7 |
23.0 |
| 8 |
5.8 |
51.8 |
48.8 |
45.7 |
42.7 |
24.5 |
| 10 |
6.5 |
50.3 |
47.3 |
43.8 |
40.8 |
25.0 |
| 16 |
8.2 |
47.3 |
44.3 |
39.7 |
36.7 |
25.0 |
| 20 |
9.3 |
45.8 |
42.8 |
37.7 |
34.7 |
25.0 |
| 25 |
10.4 |
44.3 |
41.3 |
35.8 |
32.8 |
24.3 |
| 31.25 |
11.7 |
42.9 |
39.9 |
33.9 |
30.9 |
23.6 |
| 62.5 |
17.0 |
38.4 |
35.4 |
27.8 |
24.8 |
21.5 |
| 100 |
22.0 |
35.3 |
32.3 |
23.8 |
20.8 |
20.1 |
CONSTRUCTION PARAMETERS
| Cable Code |
Conductor
Diameter |
Diameter
Over Insulation |
Pairs |
Screen |
Nominal Overall Diameter |
| |
mm |
mm |
|
|
mm |
| FGD-Cat5E U/UTP |
0.5/0.51 |
0.91 |
4 |
Nil |
5.1 |
| FGD-Cat5E F/UTP |
0.53 |
1.00 |
4 |
Overall Aluminum Tape Screen |
6.3 |
| FGD-Cat5E SF/UTP |
0.53 |
1.00 |
4 |
Overall Aluminum Tape Screen & Copper Wire Braid |
6.6 |
