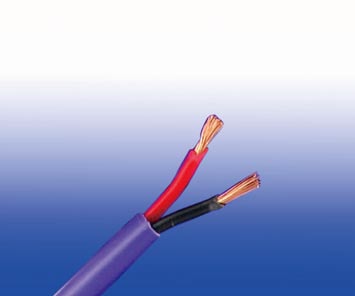

300/500V XLPE Insulated, PVC Sheathed Power Cables (2-4 Cores)

FGD200 05RV-R (CU/XLPE/PVC 300/500V Class 2)

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

images/300-500V XLPE Insulated, PVC Sheathed Power Cables (2-4 Cores).jpg images/XLPE Insulated, PVC Sheathed Power Cables.jpg

STANDARDS

  • Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING

300/500 V

CABLE CONSTRUCTION

Conductor Plain annealed copper wire, stranded according to IEC 60228 class 2
Insulation Extruded cross-linked XLPE compound
Outer Sheath Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request

COLOUR CODE

Insulation Colour as per BS7671

With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue

Sheath Colour: Black (other colors upon request)

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (XLPE) 90°C
Maximum short circuit temperature (5 Seconds) 250°C
Minimum bending radius 6 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FGD200 05RV-R
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Approx. Weight
Noxmm2 No./mm mm mm kg/km
2x1.5 7/0.53 0.50 6.5 65
2x2.5 7/0.67 0.50 7.3 91
2x4 7/0.85 0.50 8.4 131
3x1.5 7/0.53 0.50 6.9 81
3x2.5 7/0.67 0.50 7.8 116
3x4 7/0.85 0.50 9.0 169
4x1.5 7/0.53 0.50 7.6 101
4x2.5 7/0.67 0.50 8.6 144
4x4 7/0.85 0.50 9.9 213

ELECTRICAL PROPERTIES

Conductor Operating Temperature 70°C
Ambient Temperature 30°C

Current-Carrying Capacities (Amp)

Conductor cross-sectional area Reference Method A (enclosed in conduit inthermally insulating wall etc) Reference Method B (enclosed in conduit on a wall or in trunking etc) Reference Method C (clipped direct) Reference Method E (in free air or on a perforated cable tray, horizontal or vertical etc) Touching
1 two-core cable*, single-phase a.c. or d.c. 1 three-or four corecable*, three-phase a.c. 1 two-core cable*,single-phase a.c. or d.c. 1 three-or four corecable*, three-phase a.c. 1 two-core cable*, single-phase a.c. or d.c. 1 three-or four corecable*, three-phase a.c. 1 two-core cable*,single-phase a.c. or d.c. 1 three-or four corecable*, three-phase a.c.
1 2 3 4 5 6 7 8 9
mm2 A A A A A A A A
1.5 18.5 16.5 22 19.5 24 22 26 23
2.5 25 22 30 26 33 30 36 32
4 33 30 40 35 45 40 49 42

Voltage Drop (Per Amp Per Meter)

Conductor cross-sectional area Two-core cables, d.c. Two-core cable, single-phase a.c. Three-or four core cable, three-phase a.c.
1 2 3 4
mm2 mV/A/m mV/A/m mV/A/m
1.5 31 31 27
2.5 19 19 16
4 12 12 10

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
