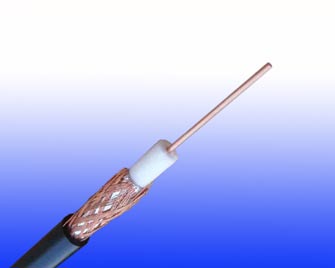

Fire Retardant RG6 A/U Coaxial cables
APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this cable is ideal for use in public, commercial and industrial environments.
STANDARDS
- Basic design adapted to MIL-C-17
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

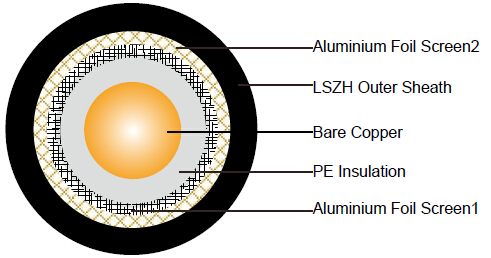

CABLE CONSTRUCTION
| Conductors |
18AWG bare copper wire, solid according to IEC 60228 class 1 |
| Insulation |
Foamed PE compound |
| Overall Screen 1 |
Aluminium foil |
| Overall Screen 2 |
Aluminium foil |
| Outer Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
PHYSICAL AND THERMAL PROPERTIES
| Temperature Range During Operation (Fixed State) |
-30°C - +70°C |
| Temperature range during installation (Mobile state) |
-5oC - +60oC |
| Minimum Bending Radius |
8 X Overall Diameter |
ELECTRICAL PROPERTIES
| Impedance |
75±5Ω |
| Capacitance |
54 nF/km |
| Velocity ratio |
82% |
| Insulation resistance |
>5000 Mohm.Km |
| DC resistance |
| Inner conductor |
23.1 Ω/km |
| Outer conductor |
31 Ω/km |
ATTENUATION
| Frequency |
Attenuation |
Attenuation |
| MHz |
dB/100 m |
dB/100ft |
| 50 |
5.0 |
1.5 |
| 100 |
6.4 |
1.96 |
| 200 |
9.2 |
2.8 |
| 500 |
14.5 |
4.4 |
| 600 |
15.9 |
4.9 |
| 800 |
17.7 |
5.4 |
| 1000 |
21.9 |
6.7 |
| 1350 |
24.9 |
7.6 |
| 1750 |
29.0 |
8.8 |
| 2050 |
33.1 |
10.1 |
| 2400 |
36.4 |
11.1 |
RETURN LOSS
| Frequency |
Return Loss |
| MHz |
dB |
| 30-300 |
>28 |
| 300-600 |
>24 |
| 600-900 |
>22 |
CONSTRUCTION PARAMETERS
| Cable Code |
Conductor Diameter |
Nominal Insulation Diameter |
Nominal Overall Diameter |
Approx. Weight |
| |
mm |
mm |
mm |
kg/km |
| RG6/U LH |
1.02 |
4.57 ± 0.20 |
7.00 |
43 |
