450/750V LSZH Insulated, Non-sheathed Power Cables (Single Core)

FTX100 07Z1-R (CU/LSZH 450/750V Class 2)

APPLICATION

This cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

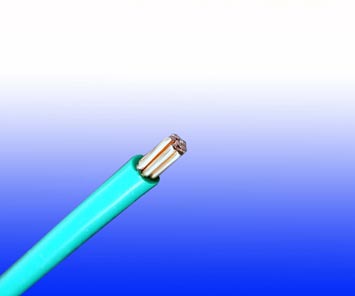

images/450/750V LSZH Insulated, Non-sheathed Power Cables (Single Core).jpg images/LSZH Insulated, Non-sheathed Power Cables.jpg

STANDARDS

  • Basic design to BS 7211

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

450/750 V

CABLE CONSTRUCTION

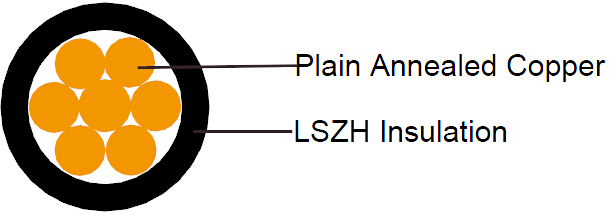

Conductor Plain annealed copper wire, stranded according to IEC 60228 class 2
Insulation Thermoplastic or thermosetting LSZH compound

COLOUR CODE

Insulation Colour as per BS7671
Sheath Colour Black (other colors upon request)

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (XLPE) 90°C
Maximum short circuit temperature (5 Seconds) 250°C
Minimum bending radius 6 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FTX100 07Z1-R
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Approx. Weight
Noxmm2 No./mm mm mm kg/km
1x1.5 7/0.53 0.7 3.1 23
1x2.5 7/0.67 0.8 3.7 35
1x4.0 7/0.85 0.8 4.3 52
1x6.0 7/1.04 0.8 4.8 73
1x10 7/1.35 1.0 6.2 120
1x16 7/1.70 1.0 7.2 180
1x25 7/2.24 1.2 9.0 285
1x35 19/1.53 1.2 10.2 375
1x50 19/1.78 1.4 12.0 510
1x70 19/2.14 1.4 14.0 720
1x95 19/2.52 1.6 16.0 995
1x120 37/2.03 1.6 18.0 1230
1x150 37/2.25 1.8 20.0 1520
1x185 37/2.52 2.0 22.0 1900
1x240 61/2.25 2.2 25.0 2480
1x300 61/2.52 2.4 28.0 3100
1x400 61.2.85 2.6 31.5 3950
1x500 61/3.20 2.8 35.0 4950
1x630 127/2.52 2.8 39.0 6360

ELECTRICAL PROPERTIES

Conductor Operating Temperature 90°C
Ambient Temperature 30°C

Current-Carrying Capacities (Amp)

Conductor cross-sectional area Reference Method A (enclosed inconduit in thermally insulating walletc) Reference Method B (enclosed inconduit on a wall or in trunking etc) Reference Method C (clipped direct) Reference Method F (in free air or on aperforated cable tray, horizontal or verticaletc) Touching Reference MethodG (in free air) Spaced by one cable diameter
2 cables, single-phase a.c. or d.c. 3 or 4 cables, three-phase a.c. 2 cables, single-phase a.c. or d.c 3 or 4 cables, three-phase a.c. 2 cables, single-phase a.c. or d.c. flat andtouching 3 or 4 cables, three-phase a.c. flat and touching or trefoil 2 cables, single-phase a.c. or d.c. flat 3 cables, three-phase a.c. flat 3 cables, three-phase a.c. trefoil 2 cables, single-phase a.c. or d.c. or 3 cables three-phase a.c. flat
Horizontal Vertical
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
1.5 19 17 23 20 25 23 - - - - -
2.5 26 23 31 28 34 31 - - - - -
4.0 35 31 42 37 46 41 - - - - -
6.0 45 40 54 48 59 54 - - - - -
10 61 54 75 66 81 74 - - - - -
16 81 73 100 88 109 99 - - - - -
25 106 95 133 117 143 130 161 141 135 182 161
35 131 117 164 144 176 161 200 176 169 226 201
50 158 141 198 175 228 209 242 216 207 275 246
70 200 179 253 222 293 268 310 279 268 353 318
95 241 216 306 269 355 326 377 342 328 430 389
120 278 249 354 312 413 379 437 400 383 500 454
150 318 285 393 342 476 436 504 464 444 577 527
185 362 324 449 384 545 500 575 533 510 661 605
240 424 380 528 450 644 590 679 634 607 781 719
300 486 435 306 514 743 681 783 736 703 902 833
400 - - 383 584 868 793 940 868 823 1085 1008
500 - - 783 666 990 904 1083 998 946 1253 1169
630 - - 900 764 113 1033 1254 1151 1088 1454 1362

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area 2 cablesd.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
Ref. Methods A and B (enclosed in conduit ortrunking) Ref. Methods C, F&G(clipped direct, on trays or in free air) Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods C, F& G(clipped direct, on trays or in free air)
Cables touching,Trefoil Cables touching,Flat Cables spaced*, Flat
1 2 3 Cables touching 4 Cables spaced*5 6 7 8 9
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31 31 31 31 27 27 27 27
2.5 19 19 19 19 16 16 16 16
4.0 12 12 12 12 10 10 10 10
6.0 7.9 7.9 7.9 7.9 6.8 6.8 6.8 6.8
10 4.7 4.7 4.7 4.7 4.0 4.0 4.0 4.0
16 2.9 2.9 2.9 2.9 2.5 2.5 2.5 2.5
    r x z r x z r x z r x z r x z r x z r x z
25 1.85 1.85 0.31 1.90 1.85 0.190 1.85 1.85 0.28 1.85 1.60 0.27 1.65 1.60 0.165 1.60 1.60 0.190 1.60 1.60 0.27 1.65
35 1.35 1.35 0.29 1.35 1.35 0.180 1.35 1.35 0.27 1.35 1.15 0.25 1.15 1.15 0.155 1.15 1.15 0.180 1.15 1.15 0.26 1.20
50 0.99 1.00 0.29 1.05 0.99 0.180 1.00 0.99 0.27 1.00 0.87 0.25 0.90 0.86 0.155 0.87 0.86 0.180 0.87 0.86 0.26 0.89
70 0.68 0.70 0.28 0.75 0.68 0.175 0.71 0.68 0.26 0.73 0.60 0.24 0.65 0.59 0.150 0.61 0.59 0.175 0.62 0.59 0.25 0.65
95 0.49 0.51 0.27 0.58 0.49 0.170 0.52 0.49 0.26 0.56 0.44 0.23 0.50 0.43 0.145 0.50 0.43 0.170 0.45 0.43 0.25 0.49
120 0.39 0.41 0.26 0.48 0.39 0.165 0.43 0.39 0.25 0.47 0.35 0.23 0.42 0.34 0.140 0.37 0.34 0.165 0.38 0.34 0.24 0.42
150 032 0.33 0.26 0.43 0.32 0.165 0.36 0.32 0.25 0.41 0.29 0.23 0.37 0.28 0.140 0.31 0.28 0.165 0.32 0.28 0.24 0.37
185 0.25 0.27 0.26 0.37 0.26 0.165 0.30 0.25 0.25 0.36 0.23 0.23 0.32 0.22 0.140 0.26 0.22 0.165 0.28 0.22 0.24 0.33
240 0.190 0.21 0.26 0.33 0.20 0.160 0.25 0.195 0.25 0.31 0.185 0.22 0.29 0.170 0.140 0.22 0.170 0.165 0.24 0.170 0.24 0.29
300 0.155 0.175 0.25 0.31 0.160 0.160 0.22 0.155 0.25 0.29 0.150 0.22 0.27 0.140 0.140 0.195 0.135 0.160 0.21 0.135 0.24 0.27
400 0.120 0.140 0.25 0.29 0.130 0.155 0.20 0.125 0.24 0.27 0.125 0.22 0.25 0.110 0.135 0.175 0.110 0.160 0.195 0.110 0.24 0.26
500 0.093 0.120 0.25 0.28 0.105 0.155 0.185 0.098 0.24 0.26 0.100 0.22 0.24 0.090 0.135 0.160 0.088 0.160 0.180 0.085 0.24 0.25
630 0.072 0.100 0.25 0.27 0.086 0.155 0.175 0.078 0.24 0.25 0.088 0.21 0.23 0.074 0.135 0.150 0.071 0.160 0.170 0.068 0.23 0.24

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
