6192Y/ 6193Y to BS 6004

Application and Description

These cables are suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. They should be laid in conduit in conduit or trunking where mechanical protection is required.

Cable Construction

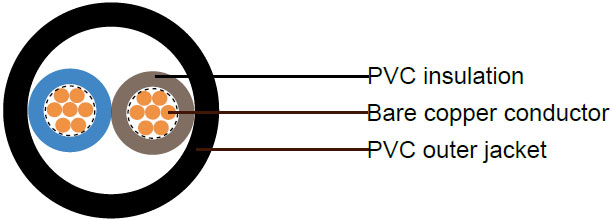

6192Y/6193Y to BS 6004 6192Y/6193Y - British Standard Industrial Cables
Fine bare copper strands
Stranding to BS 6360, IEC 60228 Class 1 or 2
PVC insulation type TI1 to BS 7655
PVC sheath type T6 to BS 7655

Core Identification

2 Cores brown and blue
3 cores brown, black and grey

Technical Characteristics

Working voltage 300/500v
Test voltage 2000 volts
Minimum bending radius 4xOverall diameter
Operating temperature -15 oC to +70 oC
Short circuit temperature +160 oC
Flame retardant IEC 60332.1
Insulation resistance 10 MΩxkm

Cable Parameter

AWG (No of Strands/Strand Diameter) No. of Cores x Nominal Cross Sectional Area Nominal thickness of insulation Nominal thickness of sheath Nominal overall dimensions Nominal Weight
lower limit upper limit
#xmm^2 mm mm mm mm kg/km
6192Y
17 2 × 1.0 0.6 0.9 4x6.2 4.7x7.4 53
16 2 × 1.5 0.7 0.9 4.4x7.0 5.4x8.4 70
14 2 × 2.5 0.8 1 5.2x8.4 6.2x9.8 105
12(7/20) 2 × 4 0.8 1 6x10.4 7.2x11.5 150
10(7/18) 2 × 6 0.8 1.1 6.8x11.5 8.0x13.0 205
8(7/16) 2 × 10 1 1.2 7.8x15.1 9.6x16 325
6(7/14) 2 × 16 1 1.3 9.8x17.2 11.0x18.5 465
6193Y
17 3 × 1.0 0.6 0.9 4x8.4 4.7x9.8 77
16 3 × 1.5 0.7 0.9 4.4x9.8 5.4x11.5 100
14 3 × 2.5 0.8 1 5.2x11.5 6.2x13.5 150
12(7/20) 3 × 4 0.8 1.1 6x14.8 7.4x16.5 230
10(7/18) 3 × 6 0.8 1.1 6.8x16.5 8.0x18.0 300
8(7/16) 3 × 10 1 1.2 7.8x21.0 9.6x22.5 485
6(7/14) 3 × 16 1 1.3 9.8x24.8 11.0x26.5 700
