H05V-U / H07V-U

Application and Description

H05 V-U/(H)05 V-U

These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

H07 V-U/(H)07 V-U

These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks.

These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.

Standard and Approval

  • NF C 32-201-3
  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
  • ROHS compliant

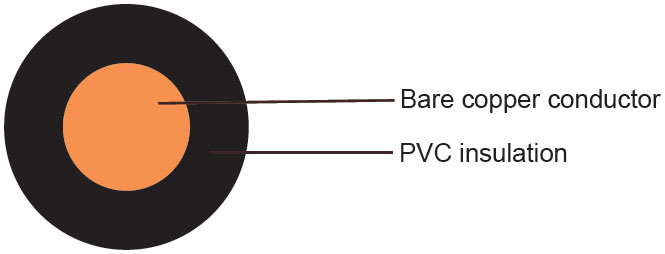

Cable Construction

H07V-U H07V-U
Solid bare copper single wire
Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
H05V-U (20, 18 & 17 AWG)
H07V-U (16 AWG and Larger)

Technical Characteristics

Working voltage 300/500v (H05V-U)
Working voltage 450/750v (H07V-U)
Test voltage 2000V(H05V-U)/2500V (H07V-U)
Flexing bending radius 15 x O
Static bending radius 15 x O
Flexing temperature -5oC to +70oC
Static temperature -30oC to +90oC
Short circuit temperature +160oC
Flame retardant NF C 32-070
Insulation resistance 10 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
  # x mm^2 mm mm kg/km kg/km
20 1 x 0.5 0.6 2.1 4.8 9
18 1 x 0.75 0.6 2.2 7.2 11
17 1 x 1 0.6 2.4 9.6 14
16 1 x 1.5 0.7 2.9 14.4 21
14 1 x 2.5 0.8 3.5 24.0 33
12 1 x 4 0.8 3.9 38.0 49
10 1 x 6 0.8 4.5 58.0 69
8 1 x 10 1.0 5.7 96.0 115
