FR2XOHR
Application and Description
These cables are suitable for installation in wet environments and with fire protection necessities, total screen guarantee protection against electromagnetic interferences (Red copper screen).
Standard and Approval
- CEI 20-11
- CEI 20-22/2
- CEI 20-29
- CEI 20-35 (EN60332-1)
- CEI 20-37 pt.1(EN50267)

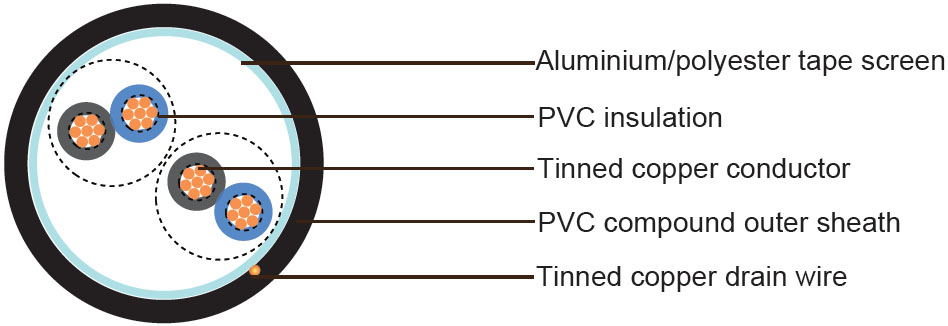

Cable Construction
| Flexible tinned copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5, CEI 20-29 Class-5 |
| PVC Insulation compound type R2 according to CEI 20-11 |
| Core identification: |
PAIR- blue-black, with black progressively numbered. |
| |
TRIAD- blue-brown-black, with black progressively numbered. |
| Cores twisted in pairs-triads, pairs-triads twisted in concentric layers |
| Aluminium/Polyester tape screen with 7x0.3mm tinned copper drain wire |
| PVC outer sheath compound type Rz according to CEI 20-11 |
Technical Characteristics
| Working voltage |
300/500V 450/750V |
| Test voltage |
2000V (300/500V ) / 4000V (450/750V) |
| Minimum bending radius |
10 x O |
| Flexing temperature |
0o C to +70o C |
| Static temperature |
-30o C to +70o C |
| Short circruit temperature |
+160o C |
| Fire performance IEC 60332.1, IEC 60332-3A |
| Low smoke emission IEC 60754-1 |
| Insulation resistance |
10 MΩ x km |
Cable Parameter
Pair
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
|
AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
| # x mm^2 |
mm |
# x mm^2 |
mm |
| 450/750V |
|
300/500V |
| 20(16/32) |
2 x 0.50 |
6.65 |
|
20(16/32) |
2 x 0.50 |
5.85 |
| 20(16/32) |
4 x 0.50 |
7.59 |
|
20(16/32) |
4 x 0.50 |
6.63 |
| 20(16/32) |
6 x 0.50 |
8.95 |
|
20(16/32) |
6 x 0.50 |
7.75 |
| 20(16/32) |
12 x 0.50 |
12.00 |
|
20(16/32) |
12 x 0.50 |
9.94 |
| 20(16/32) |
18 x 0.50 |
13.95 |
|
20(16/32) |
18 x 0.50 |
11.95 |
| 20(16/32) |
24 x 0.50 |
16.45 |
|
20(16/32) |
24 x 0.50 |
13.85 |
| 20(16/32) |
30 x 0.50 |
17.39 |
|
20(16/32) |
30 x 0.50 |
14.63 |
| 20(16/32) |
48 x 0.50 |
21.80 |
|
20(16/32) |
48 x 0.50 |
18.34 |
| 18(24/32) |
2 x 0.75 |
7.05 |
|
18(24/32) |
2 x 0.75 |
6.25 |
| 18(24/32) |
4 x 0.75 |
8.08 |
|
18(24/32) |
4 x 0.75 |
7.11 |
| 18(24/32) |
6 x 0.75 |
9.55 |
|
18(24/32) |
6 x 0.75 |
8.35 |
| 18(24/32) |
12 x 0.75 |
12.83 |
|
18(24/32) |
2 x 0.75 |
10.77 |
| 18(24/32) |
18 x 0.75 |
14.95 |
|
18(24/32) |
18 x 0.75 |
12.95 |
| 18(24/32) |
24 x 0.75 |
17.85 |
|
18(24/32) |
24 x 0.75 |
15.05 |
| 18(24/32) |
30 x 0.75 |
18.88 |
|
18(24/32) |
30 x 0.75 |
16.11 |
| 18(24/32) |
48 x 0.75 |
23.63 |
|
18(24/32) |
48 x 0.75 |
20.17 |
| 17(32/32) |
2 x 1.00 |
7.45 |
|
17(32/32) |
2 x 1.00 |
7.05 |
| 17(32/32) |
4 x 1.00 |
8.56 |
|
17(32/32) |
4 x 1.00 |
8.08 |
| 17(32/32) |
6 x 1.00 |
10.15 |
|
17(32/32) |
6 x 1.00 |
9.55 |
| 17(32/32) |
12 x 1.00 |
13.66 |
|
17(32/32) |
12 x 1.00 |
12.83 |
| 17(32/32) |
18 x 1.00 |
16.15 |
|
17(32/32) |
18 x 1.00 |
14.95 |
| 17(32/32) |
24 x 1.00 |
19.05 |
|
17(32/32) |
24 x 1.00 |
17.85 |
| 17(32/32) |
30 x 1.00 |
20.36 |
|
17(32/32) |
30 x 1.00 |
18.88 |
| 17(32/32) |
48 x 1.00 |
25.66 |
|
17(32/32) |
48 x 1.00 |
23.63 |
| 16(30/30) |
2 x 1.50 |
8.05 |
|
16(30/30) |
2 x 1.50 |
7.65 |
| 16(30/30) |
4 x 1.50 |
9.28 |
|
16(30/30) |
4 x 1.50 |
8.80 |
| 16(30/30) |
6 x 1.50 |
11.45 |
|
16(30/30) |
6 x 1.50 |
10.45 |
| 16(30/30) |
12 x 1.50 |
14.90 |
|
16(30/30) |
12 x 1.50 |
14.07 |
| 16(30/30) |
18 x 1.50 |
17.85 |
|
16(30/30) |
18 x 1.50 |
16.65 |
| 16(30/30) |
24 x 1.50 |
21.05 |
|
16(30/30) |
24 x 1.50 |
19.65 |
| 16(30/30) |
30 x 1.50 |
22.48 |
|
16(30/30) |
30 x 1.50 |
21.00 |
| 16(30/30) |
48 x 1.50 |
28.30 |
|
16(30/30) |
48 x 1.50 |
26.47 |
| 14(50/30) |
2 x 2.50 |
9.45 |
|
14(50/30) |
2 x 2.50 |
8.65 |
| 14(50/30) |
4 x 2.50 |
10.97 |
|
14(50/30) |
4 x 2.50 |
10.00 |
| 14(50/30) |
6 x 2.50 |
13.55 |
|
14(50/30) |
6 x 2.50 |
12.35 |
| 14(50/30) |
12 x 2.50 |
18.21 |
|
14(50/30) |
12 x 2.50 |
16.35 |
| 14(50/30) |
18 x 2.50 |
21.55 |
|
14(50/30) |
18 x 2.50 |
19.35 |
| 14(50/30) |
24 x 2.50 |
25.85 |
|
14(50/30) |
24 x 2.50 |
23.05 |
| 14(50/30) |
30 x 2.50 |
27.57 |
|
14(50/30) |
30 x 2.50 |
24.60 |
| 14(50/30) |
48 x 2.50 |
34.61 |
|
14(50/30) |
48 x 2.50 |
31.15 |
| 12(56/28) |
2 x 4.00 |
10.45 |
|
|
|
|
| 12(56/28) |
4 x 4.00 |
12.57 |
|
|
|
|
| 10(84/28) |
2 x 6.00 |
12.45 |
|
|
|
|
| 10(84/28) |
4 x 6.00 |
14.50 |
|
|
|
|
Triad(450/750V)
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
|
AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
| # x mm^2 |
mm |
# x mm^2 |
mm |
| 17(32/32) |
2x3x1 |
12.0 |
|
16(30/30) |
4x3x1.5 |
16.3 |
| 17(32/32) |
3x3x1 |
12.7 |
|
16(30/30) |
6x3x1.5 |
20.3 |
| 17(32/32) |
4x3x1 |
14.0 |
|
16(30/30) |
12x3x1.5 |
26.6 |
| 17(32/32) |
6x3x1 |
17.0 |
|
16(30/30) |
24x3x1.5 |
37.6 |
| 17(32/32) |
12x3x1 |
22.2 |
|
14(50/30) |
2x3x2.5 |
16.7 |
| 17(32/32) |
24x3x1 |
31.7 |
|
14(50/30) |
3x3x2.5 |
17.6 |
| 16(30/30) |
2x3x1.5 |
14.0 |
|
14(50/30) |
4x3x2.5 |
19.8 |
| 16(30/30) |
3x3x1.5 |
15.0 |
|
14(50/30) |
6x3x2.5 |
23.6 |
