FXZ1
Application and Description
These cables with zero halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.
Standard and Approval
IEC60502-1

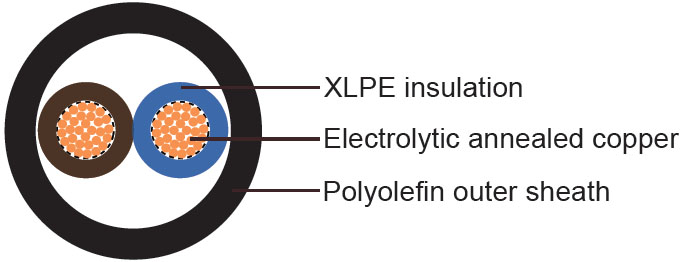

Cable Construction
| Flexible electrolytic annealed copper conductor |
| Class 5 in accordance with IEC 60228 |
| XLPE insulation type DIX 3 according to HD603. |
| Color coded to HD 308 |
| LOSH polyolephine outer sheath |
Technical Characteristics
| Working Voltage |
600/1000 volts |
| Test voltage |
3500 volts |
| Minimum bending radius |
10 x Ø |
| Working temperature |
-15°C to +90°C |
| Short circuit temperature |
+250°C |
| Insulation resistance |
1000 MΩ x km |
| Halogen free |
IEC 60754-1, EN 50267-2-1 |
| No corrosive gases |
IEC 60754-2, EN 50267-2-2 |
| No toxic gases |
NES 02-713, NF X 70-100 |
| Low smoke density |
IEC 61034, EN 50268-2 |
| Flame retardant |
IEC 60332-1, EN 50265-2-1 |
| Non-flame propagating |
IEC 60332-3, EN 50266-2 |
Cable Parameter
| No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
Nominal Weight |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
Nominal Weight |
| # x mm² |
mm |
kg/km |
# x mm² |
mm |
kg/km |
| 1×1.5 |
5.7 |
45 |
3×10/6 |
16.1 |
493 |
| 1×2.5 |
6.1 |
57 |
3×16/10 |
18.0 |
724 |
| 1×4 |
6.7 |
73 |
3×25/16 |
21.8 |
1091 |
| 1×6 |
7.2 |
94 |
3×35/16 |
24.1 |
1405 |
| 1×10 |
8.1 |
136 |
3×50/25 |
28.1 |
1968 |
| 1×16 |
9.0 |
192 |
3×70/35 |
32.6 |
2722 |
| 1×25 |
11.0 |
286 |
3×95/50 |
37.0 |
3598 |
| 1×35 |
12.1 |
380 |
3×120/70 |
41.5 |
4609 |
| 1×50 |
13.8 |
520 |
3×150/70 |
44.9 |
5579 |
| 1×70 |
15.9 |
716 |
3×185/95 |
51.5 |
6926 |
| 1×95 |
17.6 |
924 |
3×240/120 |
58.8 |
9030 |
| 1×120 |
19.4 |
1167 |
4G 1.5 |
9.7 |
136 |
| 1×150 |
21.5 |
1456 |
4G 2.5 |
10.6 |
182 |
| 1×185 |
24.1 |
1762 |
4G 4 |
12.0 |
252 |
| 1×240 |
26.9 |
2283 |
4G 6 |
13.3 |
336 |
| 1×300 |
29.6 |
2832 |
4G 10 |
15.4 |
513 |
| 1×400 |
33.8 |
3735 |
4×16 |
18.7 |
783 |
| 1×500 |
38.0 |
4845 |
4×25 |
23.1 |
1196 |
| 1×630 |
43.1 |
6311 |
4×35 |
25.5 |
1616 |
| 2×1.5 |
8.3 |
97 |
4×50 |
30.3 |
2242 |
| 2×2.5 |
9.2 |
127 |
4×70 |
35.3 |
3119 |
| 2×4 |
10.1 |
167 |
4×95 |
39.4 |
4037 |
| 2×6 |
11.2 |
219 |
4×120 |
43.6 |
5104 |
| 2×10 |
13.0 |
323 |
4×150 |
49.8 |
6569 |
| 2×16 |
15.8 |
490 |
4×185 |
56.5 |
8063 |
| 3G1.5 |
8.8 |
114 |
4×240 |
63.1 |
10421 |
| 3G2.5 |
9.8 |
151 |
5G 1.5 |
10.3 |
159 |
| 3G4 |
11 |
206 |
5G 2.5 |
11.6 |
217 |
| 3G6 |
12 |
271 |
5G 4 |
13.0 |
302 |
| 3G10 |
14.1 |
412 |
5G 6 |
14.6 |
406 |
| 3×16 |
16.9 |
624 |
5G 10 |
16.8 |
625 |
| 3×25 |
20.6 |
947 |
5G 16 |
20.4 |
956 |
| 3×35 |
23.4 |
1276 |
5G 25 |
25.1 |
1459 |
| 3×50 |
26.8 |
1752 |
5G 35 |
28.1 |
1968 |
| 3×70 |
31.5 |
2436 |
5G 50 |
33.7 |
2779 |
