Z1Z1-K(AS)

Application and Description

These cables are high security cables. In case of fire, they emit limited toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment.

For this reason, its use is recommended used in domestic premises, kitchens, offices; or for household appliances, even those in damp places; for medium mechanical stress (e.g. washing machines, refrigerators).

Standard and Approval

  • UNE 21031
  • EN 60332
  • EN 60332-1
  • EN 50268
  • EN 50267-2
  • EN 61034
  • IEC 60332-1
  • IEC 60332-3
  • IEC 61034
  • IEC 60331

Cable Construction

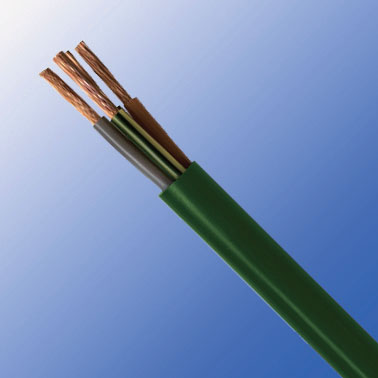

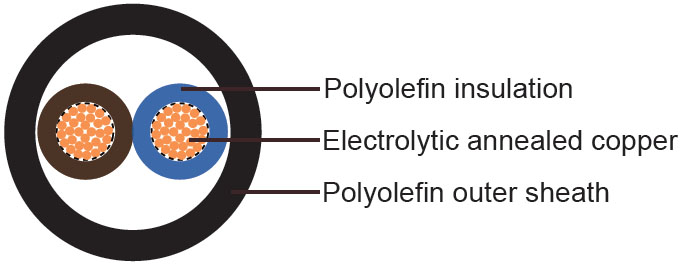

Z1Z1-K (AS) Z1Z1-K(AS)
Flexible electrolytic annealed copper conductor.
Class 5 in accordance with IEC 60228.
Polyolefin insulation type TI6 according to UNE 21031-14.
Color coded to HD 308.
FRLSHF polyolefin outer sheath type TI6 according to UNE 21031-14.

Technical Characteristics

Working voltage 300/500 volts ; 600/1000volts
Test voltage 2000 volts(300/500 volts) ; 3500 volts(600/1000 volts)
Minimum bending radius 5 x O
Working temperature -15oC to +90oC
Fixed temperature -40oC to +90oC
Flame retardant EN50265-1/EN 60332-1
Fire retardant EN50266-2/IEC 60332-3
Halogen-free EN50267/EN 50267-2-1
Low smoke opacity EN 50268/IEC 61034
Low corrosiveness gases EN 50267-2-2

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
  # x mm^2 mm kg/km
300/500V
20(16/32) 2x0.5 5.8 42
20(16/32) 3G0.5 6.2 51
20(16/32) 4G0.5 7.2 69
20(16/32) 5G0.5 8.2 89
20(16/32) 6G0.5 9 111
20(16/32) 7G0.5 9 115
20(16/32) 8G0.5 9.9 132
20(16/32) 10G0.5 11.9 185
20(16/32) 12G0.5 12.3 203
20(16/32) 14G0.5 12.6 219
20(16/32) 16G0.5 13.3 246
20(16/32) 20G0.5 14.5 296
20(16/32) 24G0.5 16.5 376
20(16/32) 30G0.5 17.2 425
20(16/32) 37G0.5 18.8 512
20(16/32) 40G0.5 19.2 530
20(16/32) 50G0.5 21.3 680
20(16/32) 60G0.5 23.2 780
18(24/32) 2x0.75 6.6 56
18(24/32) 3G0.75 6.8 65
18(24/32) 4G0.75 7.6 83
18(24/32) 5G0.75 8.6 105
18(24/32) 6G0.75 9.7 132
18(24/32) 7G0.75 9.7 138
18(24/32) 8G0.75 10.4 158
18(24/32) 10G0.75 12.2 212
18(24/32) 12G0.75 12.6 234
18(24/32) 14G0.75 13.4 268
18(24/32) 16G0.75 14.2 302
18(24/32) 20G0.75 15.5 366
18(24/32) 24G0.75 17.7 465
18(24/32) 30G0.75 18.9 546
18(24/32) 37G0.75 20.7 661
18(24/32) 40G0.75 21.5 681
18(24/32) 50G0.75 23.3 855
18(24/32) 60G0.75 24.8 1025
17(32/32) 2x1 7 66
17(32/32) 3G1 7.2 76
17(32/32) 4G1 8.1 98
17(32/32) 5G1 8.9 120
17(32/32) 6G1 10.3 156
17(32/32) 7G1 10.3 164
17(32/32) 8G1 11.2 192
17(32/32) 10G1 13.2 257
17(32/32) 12G1 13.6 284
17(32/32) 14G1 14 311
17(32/32) 16G1 14.8 351
17(32/32) 20G1 16.5 437
17(32/32) 24G1 19 560
17(32/32) 30G1 19.8 639
17(32/32) 37G1 21.6 772
17(32/32) 40G1 22.8 835
17(32/32) 50G1 25.9 1100
17(32/32) 60G1 27.8 1276
600/1000V
16(30/30) 2 x 1.5 8.1 93
16(30/30) 3 G 1.5 8.6 110
16(30/30) 4 G 1.5 9.4 132
16(30/30) 5 G 1.5 9.9 150
16(30/30) 6 G 1.5 11.5 188
16(30/30) 7 G 1.5 11.5 197
16(30/30) 8 G 1.5 12.1 220
16(30/30) 10 G 1.5 14.2 286
16(30/30) 12 G 1.5 14.7 317
16(30/30) 14 G 1.5 15.4 353
16(30/30) 16 G 1.5 16.4 398
16(30/30) 20 G 1.5 18.1 484
16(30/30) 24 G 1.5 20.8 608
16(30/30) 25 G 1.5 20.8 630
16(30/30) 27 G 1.5 21.2 649
16(30/30) 30 G 1.5 21.7 694
16(30/30) 37 G 1.5 23.9 839
16(30/30) 44 G 1.5 25.9 985
16(30/30) 52 G 1.5 28.1 1205
16(30/30) 60 G 1.5 30.2 1335
14(50/30) 2 x 2.5 9 119
14(50/30) 3 G 2.5 9.6 144
14(50/30) 4 G 2.5 10.5 175
14(50/30) 5 G 2.5 11.1 201
14(50/30) 6 G 2.5 12.7 250
14(50/30) 7 G 2.5 12.9 265
14(50/30) 8 G 2.5 13.6 300
14(50/30) 10 G 2.5 16.3 399
14(50/30) 12 G 2.5 16.7 440
14(50/30) 14 G 2.5 18.1 490
14(50/30) 16 G 2.5 18.5 553
14(50/30) 20 G 2.5 20.5 677
14(50/30) 24 G 2.5 23.6 850
14(50/30) 25 G 2.5 23.6 888
14(50/30) 27 G 2.5 24.2 918
14(50/30) 30 G 2.5 24.7 983
14(50/30) 37 G 2.5 25.9 1193
12(56/28) 7 G 4 15.5 395
10(84/28) 7 G 6 18.1 527
8(80/26) 7 G 10 23.6 728
6(128/26) 7 G 16 27.2 1043
