Portable Arc-Welding Cable 600V
Applications
These cables are designed for use as flexible welding leads connecting the electrode holder to the welding machine in the secondary circuit of electric arc welding systems.
Standards
- ICEA S-75-381/NEMA WC 58
- ASTM B 172
- ASTM B 33
- CAN/CSA C22.2 No. 96
- UL 1581

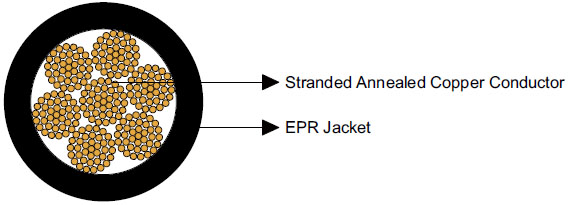

Construction
-29.jpg) |
| Conductors | Class K/M stranded annealed copper conductor. |
|---|---|
| Jacket | Heavy-duty/medium-duty Ethylene Propylene Rubber (EPR). |
Options
Other jacket materials such as NR/CSP/PCP/NBR/PVC are available upon request.
Heavy-duty, two-layer jacket with reinforcement between the two layers can be offered as an option.
Mechanical and Thermal Properties
| Minimum Bending Radius | 6×OD |
|---|---|
| Maximum Conductor Operating Temperature | +90℃ |
Dimensions and Weight
| Construction | No. of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | |||
|---|---|---|---|---|---|---|---|---|
| No. of cores×AWG/kcmil | - | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 1×6 | 259 | 0.060 | 1.5 | 0.37 | 9.4 | 124 | 184 | 125 |
| 1×4 | 420 | 0.060 | 1.5 | 0.42 | 10.7 | 180 | 268 | 182 |
| 1×2 | 665 | 0.060 | 1.5 | 0.49 | 12.5 | 268 | 399 | 271 |
| 1×1 | 836 | 0.080 | 2.0 | 0.53 | 13.3 | 319 | 475 | 360 |
| 1×1/0 | 1045 | 0.080 | 2.0 | 0.59 | 14.9 | 415 | 617 | 444 |
| 1×2/0 | 1330 | 0.080 | 2.0 | 0.64 | 16.3 | 508 | 756 | 535 |
| 1×3/0 | 1672 | 0.080 | 2.0 | 0.70 | 17.8 | 628 | 934 | 667 |
| 1×4/0 | 2107 | 0.080 | 2.0 | 0.81 | 20.7 | 775 | 1153 | 809 |
| 1×250 | 2499 | 0.095 | 2.4 | 0.88 | 22.4 | 934 | 1390 | 1048 |
| 1×350 | 3458 | 0.095 | 2.4 | 1.01 | 25.6 | 1267 | 1885 | 1396 |
| 1×500 | 5054 | 0.095 | 2.4 | 1.18 | 30.0 | 1801 | 2680 | 1973 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
