Type SHD-GC Three-Conductor Round Portable Power Cable, TPU Jacket 5kV

These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges, drills and for power feeders.

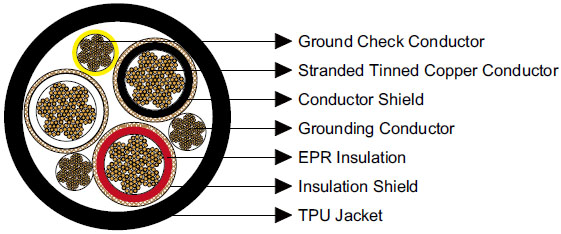

Conductors	Stranded annealed tinned copper conductor.
Conductor Shield	Conducting layer.
Insulation	Ethylene Propylene Rubber (EPR).
Insulation Shield	Tinned copper/textile braid.
Ground Check Conductor	Tinned copper with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor.
Jacket	Thermoplastic Polyurethane (TPU) Jacket, black.

Other jacket materials such as CPE/CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Minimum Bending Radius	6×OD
Maximum Conductor Operating Temperature	+90℃

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×6	133	10	8	0.110	2.8	0.185	4.7	1.56	39.6	1342	1997	93
3×4	259	8	8	0.110	2.8	0.185	4.7	1.68	42.7	1629	2424	122
3×2	259	6	8	0.110	2.8	0.205	5.2	1.87	47.5	2228	3315	159
3×1	259	5	8	0.110	2.8	0.205	5.2	1.95	49.5	2447	3641	184
3×1/0	266	4	8	0.110	2.8	0.220	5.6	2.08	52.8	2760	4106	211
3×2/0	323	3	8	0.110	2.8	0.220	5.6	2.20	55.9	3238	4818	243
3×3/0	418	2	8	0.110	2.8	0.235	6.0	2.36	59.9	3792	5642	279
3×4/0	532	1	8	0.110	2.8	0.235	6.0	2.50	63.5	4548	6767	321
3×250	627	1/0	6	0.120	3.0	0.250	6.4	2.69	68.3	5427	8074	355
3×350	888	2/0	6	0.120	3.0	0.265	6.7	2.95	74.9	7070	10519	435
3×500	1221	4/0	6	0.120	3.0	0.280	7.1	3.31	84.1	9407	13996	536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
