Type W Two-Conductor Flat Portable Power Cable 2kV

These flat parallel cables are designed for use on DC mining equipment, such as D.C. shuttle cars, drills, cutting and loading machines.

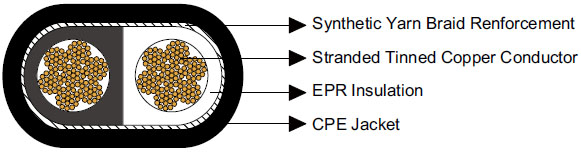

Conductors	Stranded annealed tinned copper conductor.
Insulation	Ethylene Propylene Rubber (EPR).
Reinforcement	Synthetic yarn.
Jacket	Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Minimum Bending Radius	6×OD
Maximum Conductor Operating Temperature	+90℃

Construction	No. of Strands	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
2×8	133	0.06	1.5	0.080	2.0	0.51×0.84	13.0×21.3	340	506	72
2×6	133	0.06	1.5	0.080	2.0	0.56×0.93	14.2×23.6	440	655	95
2×4	259	0.06	1.5	0.095	2.4	0.61×1.05	15.5×26.7	550	818	127
2×3	259	0.06	1.5	0.095	2.4	0.68×1.14	17.3×29.0	675	1005	145
2×2	259	0.06	1.5	0.095	2.4	0.73×1.24	18.5×31.5	810	1205	167
2×1	259	0.08	2.0	0.110	2.8	0.81×1.40	20.6×35.6	1020	1520	191
2×1/0	259	0.08	2.0	0.125	3.2	0.93×1.51	23.6×38.2	1265	1880	217
2×2/0	329	0.08	2.0	0.125	3.2	0.99×1.63	25.1×41.4	1515	2255	250
2×3/0	413	0.08	2.0	0.140	3.6	1.03×1.77	26.2×45.0	1810	2694	286
2×4/0	532	0.08	2.0	0.140	3.6	1.10×1.89	27.9×48.0	2175	3237	328

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
