(N)TSCGEWOEU Medium Voltage Trailing Cable With Anti-Torsion Braid
Applications
These cables are used for the connection of electrical equipment, in mines and underground excavations with hazardous environments under particularly high mechanical loads, e.g. high-voltage transformers on power lines in underground mining and tunnelling.
Standards
Based on VDE 0250 Part 813

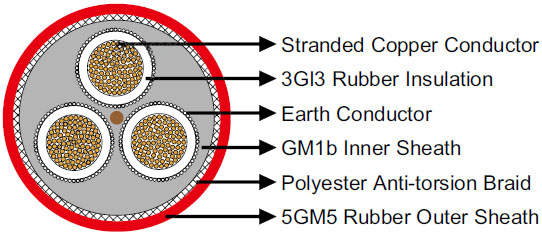

Construction
| Conductors |
Flexible stranded copper conductor, class 5 according to DIN VDE 0295. |
| Inner Conductor Layer |
Special rubber compound, conductive. |
| Insulation |
Rubber type 3GI3. |
| Outer Conductor Layer |
Special rubber compound, conductive, easy strippable. |
| Earth Conductor |
Spiral of tinned copper wires. |
| Inner Sheath |
Rubber type GM1b. |
| Reinforcement |
Polyester anti-torsion braid between the jackets embedded. |
| Outer Sheath |
Rubber type 5GM5. |
Dimensions and Weight
8.7/15kV
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter
|
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 3×150+3×70/3E |
73.0 |
78.0 |
10150 |
