NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress)
Applications
These cables are used for the connection of mobile machines under extremely high mechanical loads, predominantly in mining situations, e.g. for coal-cutting machines, also can be operated via guide pulleys (cable cars) or used as a reeling cable (LHD), suitable for extreme bending loads, high tensile stress, and impact and crushing loads.
Standards
VDE 0250 Part 812

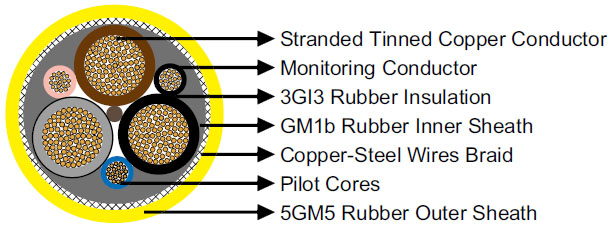

Construction
| Conductors |
Flexible stranded tinned copper conductor. |
| Insulation |
Heat resistant 3GI3 rubber based on EPR. |
| Outer Conductor Layer |
Easy strippable outer conductive layer. |
| Pilot Cores |
Copper and steel conductor capable of expansion and compression with 3GI3 EPR rubber insulation. |
| Monitoring Conductor |
Copper and steel conductor capable of expansion and compression covert with semi conductive rubber compound. |
| Inner Sheath |
Rubber type GM1b. |
| Armour/Earth Conductor |
Concentric earth conductor as tensile-stress-resistant braided armour of combined copper-steel wires. |
| Outer Sheath |
Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant. |
Dimensions and Weight
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 3×16/16KON+2ST+UEL |
38.5 |
41.5 |
2430 |
| 3×25/16KON+2ST+UEL |
41.0 |
44.5 |
3050 |
| 3×35/16KON+2ST+UEL |
44.5 |
48.0 |
3620 |
| 3×50/25KON+2ST+UEL |
50.0 |
54.0 |
4810 |
| 3×70/35KON+2ST+UEL |
54.5 |
58.5 |
5890 |
| 3×95/50KON+2ST+UEL |
62.5 |
66.5 |
7800 |
| 3×35/16KON+3ST+3UEL |
44.5 |
48.0 |
3860 |
| 3×50/25KON+3ST+3UEL |
50.0 |
54.0 |
5050 |
| 3×70/35KON+3ST+3UEL |
54.5 |
58.5 |
6000 |
| 3×95/50KON+3ST+3UEL |
62.5 |
66.5 |
8050 |
| 3×120/70KON+3ST+3UEL |
67.5 |
72.0 |
9380 |
| 3×150/70KON+3ST+3UEL |
74.5 |
79.0 |
11120 |
