NTMTWOEU 0.6/1kV Mine Hoist Cables
Applications
These cables are used as suspended cable for intrinsically safe control of user-operated mine hoists (lifts) with telephonic connection in underground mines.
Standards

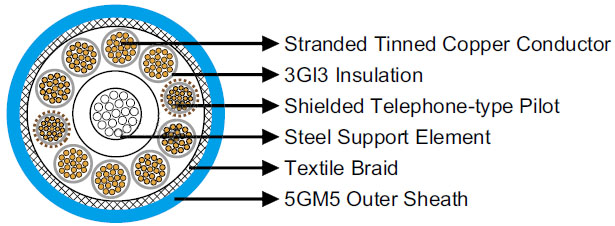

Construction
| Conductors |
Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295. |
| Insulation |
EPR type 3GI3. |
| Support Element |
Central steel support element. |
| Anti-torsion Braid |
Textile braid. |
| Outer Sheath |
PCP rubber type 5GM5. |
Dimensions and Weight
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 8x2.5ST+2x1FM(C) |
21.7 |
23.7 |
800 |
| 8x2.5ST+10x (2x1FM)C |
34.0 |
37.5 |
1450 |
| 14x2.5ST+6x1FM(C) |
27.0 |
31.0 |
1200 |
| 18x2.5ST+6x1FM(C) |
38.0 |
42.0 |
1800 |
| 19x1.5(C)ST+6x (2x1FM)C |
35.1 |
38.1 |
2145 |
