NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable
Applications
These cables are used for permanent operation in water where the cable is required to have additional mechanical protection.
Standards
VDE 0250 Part 813

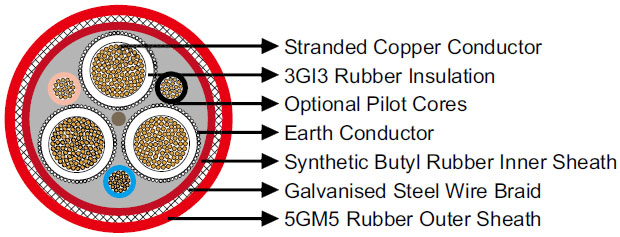

Construction
| Conductors |
Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295. |
| Inner Conductor Layer |
Special rubber compound, conductive. |
| Insulation |
Rubber type 3GI3. |
| Outer Conductor Layer |
Special rubber, conductive, easy strippable. |
| Pilot Cores (optional) |
Copper conductor with EPR insulation. |
| Earth Conductor |
Spiral of tinned annealed copper wires. |
| Inner Sheath |
Waterproof synthetic butyl rubber. |
| Armouring |
Braid of galvanised steel strands. |
| Outer Sheath |
Rubber type 5GM5. |
Dimensions and Weight
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 3×35+3×16/3E |
55.0 |
60.0 |
4600 |
| 3×50+3×25/3E |
59.0 |
67.0 |
5600 |
| 3×70+3×35/3E |
64.0 |
70.0 |
6700 |
| 3×95+3×50/3E |
68.0 |
75.0 |
7900 |
| 3×120+3×70/3E |
75.0 |
80.0 |
9980 |
