Cat 5e F/UTP 24AWG

Applications

These Cat5e F/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.

Standards

  • EN 50288
  • ISO 11801
  • IEC 61156-5
  • IEC 60332-1
  • IEC 60754-1/2
  • IEC 61034

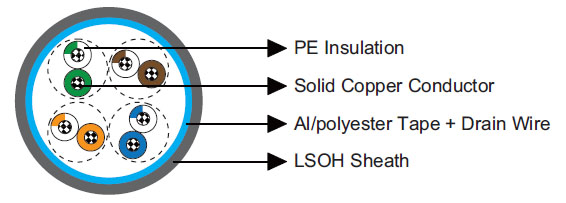

Construction

  Cat 5e F/UTP 24AWG
Conductors Solid bare copper conductor.
Insulation PE.
Twinning Two coloured insulated conductors twisted together to form a pair.
Overall Screen Al/polyester tape.
Drain Wire Tinned copper wire.
Outer Sheath LSOH.

Core Identification

Pair 1 White/Blue, Blue
Pair 2 White/Orange, Orange
Pair 3 White/Green, Green
Pair 4 White/Brown, Brown

Electrical Properties

Maximum Loop Resistance Ω/km 190
Maximum Resistance Unbalance   2%
Minimum Insulation Resistance MΩ.km 1000
Nominal Capacitance @800Hz nF/km 48
Maximum Capacitance Unbalance (pair to ground) pF/km 1500
Characteristic Impedance @1-100MHz Ω 100 ±15
Nominal Velocity of Propagation   ca. 67%
Maximum Propagation Delay ns/100 m 535
Maximum Delay Skew ns/100 m 20
Maximum Transfer Impedance @1MHz mΩ/m 50
Maximum Transfer Impedance @10MHz mΩ/m 100
Maximum Transfer Impedance @30MHz mΩ/m 200
Minimum Coupling Attenuation dB 55

Nominal Transmission Characteristics @20℃

F Attenuation NEXT PS-NEXT ACR PS-ACR ELFEXT PS-ELFEXT Return Loss
MHz dB/100m dB dB dB/100m dB/100m dB/100m dB/100m dB
1 1.9 71 68 69.1 66.1 68 65 20
4 3.7 62 59 58.3 55.3 56 53 23
10 6.0 56 53 50 47.0 48 45 25
16 7.6 53 50 45.4 42.4 44 41 25
20 8.5 51 48 42.5 39.5 42 39 25
31.2 10.7 49 46 38.3 35.3 38 35 24
62.5 15.7 44 41 28.2 25.3 32 29 22
100 19.8 41 38 21.2 18.2 28 25 20
125.0 22.3 40 37 17.7 14.7 26 23 19
155.5 24.2 38 35 13.8 10.8 24 21
175.0 25.7 37 34 11.3 8.3 23 20
200.0 27.5 36 33 8.5 5.5 22 19
250.0 29.2 35 32 5.8 2.8 20 17
300.0 32.0 34 31 2.0 -1.0 16 13

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation);
  4×OD (fixed installed)
Temperature Range -20℃ ~ +60℃

Dimensions and Weight

Part No. Construction No. of elements×No. of cores in element×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  (mm^2) mm mm mm kg/km
MLN-F/UTPCAT5E4P24 4×2×24AWG 0.25 0.75 6.97 54
