MFX300 0.6/1 kV Fire Barriers + HEPR Insulated, LSOH (SHF1) Sheathed, Screened Fire Resistant Power & Control Cables (Single Core)

Applications

These cables are used for fixed installations on ships and offshore units in all locations and on open deck in safety circuits, where fire resistance is required. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are fire resistant, flame retardant, low smoke & halogen free.

Standards

  • DIN 89160/98
  • IEC 60092-353
  • IEC 60331-21
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1/2
  • IEC 61034

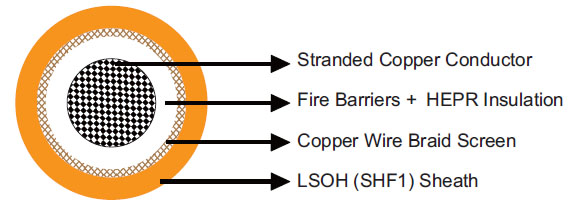

Construction

  MFX300 0.6/1 kV Fire Barriers + HEPR Insulated, LSOH (SHF1) Sheathed, Screened Fire Resistant Power & Control Cables (Single Core)
Conductors Class 2 stranded copper conductor.
Insulation Fire barriers + HEPR.
Overall Screen Copper wire braid.
Outer Sheath LSOH (SHF1).

Core Identification

Single core Natural colour (beige)

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 6×OD
Temperature Range -20℃ ~ +75℃

Dimensions and Weight

Part No. Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  mm^2 mm mm mm kg/km
MFX300-1mG7MZ1-R-1C25 1×25 0.9 1.2 12.5 380
MFX300-1mG7MZ1-R-1C35 1×35 0.9 1.2 13.5 480
MFX300-1mG7MZ1-R-1C50 1×50 1.0 1.3 15.5 670
MFX300-1mG7MZ1-R-1C70 1×70 1.1 1.4 17.5 900
MFX300-1mG7MZ1-R-1C95 1×95 1.1 1.4 19.5 1170
MFX300-1mG7MZ1-R-1C120 1×120 1.6 1.5 21.0 1430
