MTX300 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed, Screened Flame Retardant Power & Control Cables (Single Core)

Applications

These cables are used for fixed installations on ships and offshore units in all locations and on open deck. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are flame retardant, low smoke & halogen free.

Standards

  • DIN 89160/98
  • IEC 60092-353
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1/2
  • IEC 61034

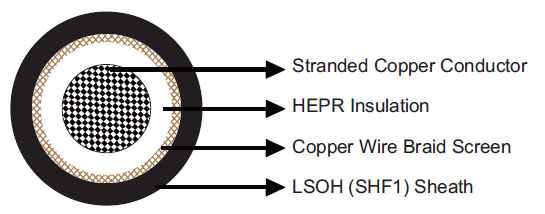

Construction

  MTX300 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed, Screened Flame Retardant Power & Control Cables (Single Core)
Conductors Class 2 stranded copper conductor.
Insulation HEPR.
Overall Screen Copper wire braid.
Outer Sheath LSOH (SHF1).

Core Identification

Single core Natural colour (beige)

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 6×OD
Temperature Range -20℃ ~ +75℃

Dimensions and Weight

Part No. Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  mm^2 mm mm mm kg/km
MTX300-1G7MZ1-R-1C4 1×4 0.7 1.2 7.3 110
MTX300-1G7MZ1-R-1C6 1×6 0.7 1.2 8.3 140
MTX300-1G7MZ1-R-1C10 1×10 0.7 1.2 9.3 190
MTX300-1G7MZ1-R-1C16 1×16 0.7 1.2 10.3 270
MTX300-1G7MZ1-R-1C25 1×25 0.9 1.2 12.3 380
MTX300-1G7MZ1-R-1C35 1×35 0.9 1.2 13.3 480
MTX300-1G7MZ1-R-1C50 1×50 1.0 1.3 15.3 660
MTX300-1G7MZ1-R-1C70 1×70 1.1 1.4 17.3 900
MTX300-1G7MZ1-R-1C95 1×95 1.1 1.4 19.5 1170
MTX300-1G7MZ1-R-1C120 1×120 1.2 1.5 21.0 1410
MTX300-1G7MZ1-R-1C150 1×150 1.4 1.6 22.8 1750
MTX300-1G7MZ1-R-1C185 1×185 1.6 1.6 24.8 2160
MTX300-1G7MZ1-R-1C240 1×240 1.7 1.7 27.8 2770
MTX300-1G7MZ1-R-1C300 1×300 1.8 1.8 30.3 3440
