PROFIBUS 1 Pair 0.35mm^2

Applications

These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

Standards

  • DIN VDE 0472 part 805
  • IEC 60332-1&2
  • IEC 60754-1/2
  • IEC 61034

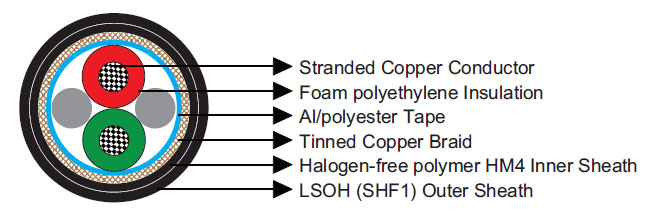

Construction

  PROFIBUS 1 Pair 0.35mm^2
Conductors Stranded bare copper.
Insulation Foam polyethylene (cellular HDPE).
Overall Screen1 Aluminium/polyester tape.
Overall Screen2 Tinned copper braid.
Inner Sheath Halogen-free polymer HM4.
Outer Sheath LSOH (SHF1).

Core Identification

Core 1 Red
Core 2 Green

Electrical Characteristics

Characteristic Impedance Ω 150 ±15
Mutual Capacitance @800MHz nF/km 30
Insulation Resistance MΩ.km 16000
Attenuation @9.6kHz dB/km 3
Attenuation @38.4kHz dB/km 5
Attenuation @4kHz dB/km 22
Attenuation @16kHz dB/km 45

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 10×OD
Temperature Range -35℃ ~ +80℃

Dimensions and Weight

Part No. Construction No. of elements×No. of cores in element×Cross section Core Diameter Nominal Overall Diameter Nominal Weight
  mm^2 mm mm kg/km
MLN-02Y(ST)CH-1×2×0.35 1×2×0.35 2.75 10.3 110
