CAN BUS CABLES 120Ω

Applications

These cables are dedicated to the shipbuilding industry.

Standards

  • IEC 60092-350/351/352/353/359/370/376
  • IEC 60332-1-2
  • IEC 60754-1/2
  • IEC 60332-3-22
  • IEC 61034

Construction

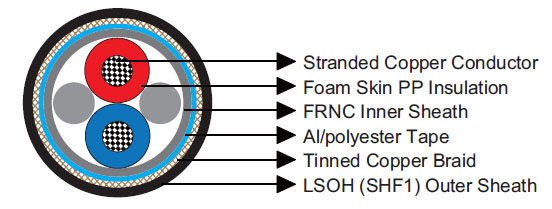

  CAN BUS CABLES 120Ω
Conductors Stranded bare copper copper 21AWG.
Insulation Foam skin PP.
Inner Sheath Thermoplastic copolymer (FRNC).
Overall Screen1 Aluminium/polyester tape.
Overall Screen2 Tinned copper braid.
Outer Sheath LSOH (SHF1).

Core Identification

Pair 1 Blue, Red
Pair 2 Brown, Green

Electrical Characteristics

Characteristic Impedance Ω 120 ±18
Mutual Capacitance @1KHz nF/km 36
Insulation Resistance GΩ.km 5
    1 pair 2 pair
Attenuation @0.1MHz dB/100m 0.65 0.3
Attenuation @1MHz dB/100m 1.9 1.1
Attenuation @5MHz dB/100m 4.3 2.8
Attenuation @10MHz dB/100m 8.1 3.9
Attenuation @20MHz dB/100m 10.5 5.7

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 10×OD
Temperature Range -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction No. of elements×No. of cores in element×Cross section Core Diameter Nominal Overall Diameter Nominal Weight
  mm^2 mm mm kg/km
MLN-09YSH(ST)CH-1×2×21A 1×2×21 AWG 2.4 7.7 79
MLN-09YSH(ST)CH-2×2×21A 2×2×21 AWG 2.2 8.4 90
