RG59 Armoured Coaxial Cable

Applications

These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

Standards

  • IEC 60092-350
  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

Construction

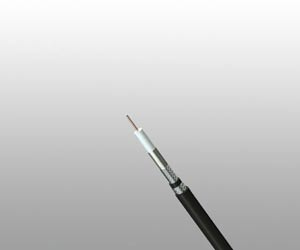

RG59 Armoured Coaxial Cable RG59 Armoured Coaxial Cable



Conductors 20AWG solid bare copper.
Insulation Foam PE.
Shielding1 Al/Polyester/Al tape.
Shielding2 Tinned copper braid.
Bedding Low smoke and halogen-free polyolefin, coloured black.
Armour Copper wire braid.
Outer Sheath Low smoke and halogen-free polyolefin.

Electrical Characteristics

AWG   20
Nominal Conductor Diameter mm 0.8
Impedance Ω 75+/-5
Nominal Attenuation@100MHz dB/100m 7.6
Nominal Attenuation@270MHz dB/100m 12.5
Nominal Attenuation@540MHz dB/100m 17.9
Nominal Attenuation@720MHz dB/100m 20.9
Nominal Attenuation@750MHz dB/100m 21.3
Nominal Attenuation@1000MHz dB/100m 24.9
Capacitance pF/m 53.5
Velocity of Propagation % 83
Conductor DCR Ω/km 32.8
Shield DCR Ω/km 12.5
Inductance μH/m 0.318
Time Delay ns/m 4.0

Mechanical and Thermal Properties

Bending Radius 15×OD
Temperature Range -30℃ ~ +75℃

Dimensions and Weight

Nominal Inner Conductor Diameter (mm) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
0.8 1.4 1.2 10.0 177
