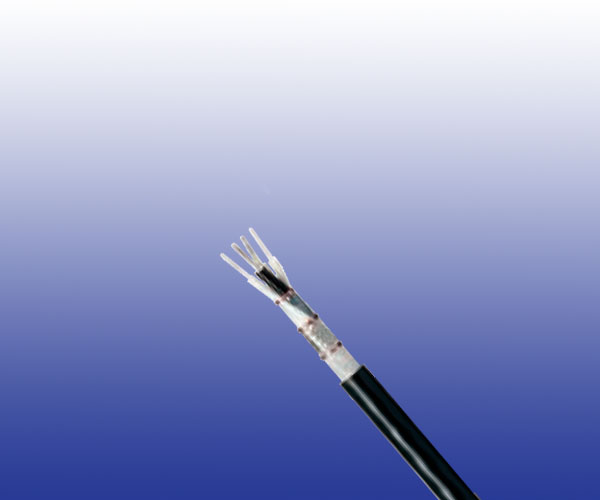

WTB (Wired Train Bus) Cables

Application

The cables are designed for permanent installation inside of rolling stock to connect fixed parts. A typical application is a communication system in a locomotive. The system uses a wire backed bus system to the TCN standard for control and instrumentation and for diagnostics.

This bus system consists of the rail bus WTB (Wired Train Bus) and the road bus MVB (Multifunction Vehicle Bus) which are connected via redundant gateways.

Standard

  • DIN 5510-2

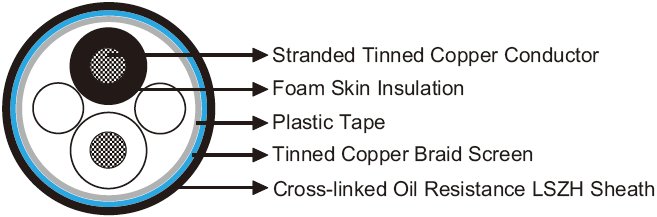

Cable Construction

WTB (Wired Train Bus) Cables Railway Cable
Conductor Stranded tinned copper conductor according to IEC 60228 class 5
Insulation Foam skin-composite PE made of inner cellular layer and outer solid skin
Core Wrapping Plastic tape(s)
EMC Screen Tinned copper braid
Outer Sheath Cross-linked oil resistant LSZH compound

Electrical Characteristics at 20℃

Nominal Cross Section mm^2 0.75
Maximum Conductor Resistance Ω/km 26.7
Impedance@1.0-10MHz Ω 120+/-12
Maximum Attenuation @1MHz dB/km 10
Maximum Attenuation @1.5MHz dB/km 13
Maximum Attenuation @2MHz dB/km 14
Maximum Attenuation @3MHz dB/km 18
Maximum Transfer Impedance mΩ/m 30
Nominal Voltage Rating V 300

Mechanical and Thermal Properties

Minimum Bending Radius 6×OD (single); 12×OD (multiple)
Temperature Range -40℃ to +100℃ (during operation); -20℃ +50℃ (during installation)

Dimensions and Weight

Cable Code No. of cores& Nominal Conductor Cross Sectional Area Nominal Diameter of Strands Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  No.×mm^2 No/mm mm mm kg/km
RD-WTB-02YSCH-2C0.75S 2×0.75 19/0.22 1.4 8.3 97
RD-WTB-02YSCH-1P0.75S 1×2×0.75 19/0.22 1.4 9.0 110
