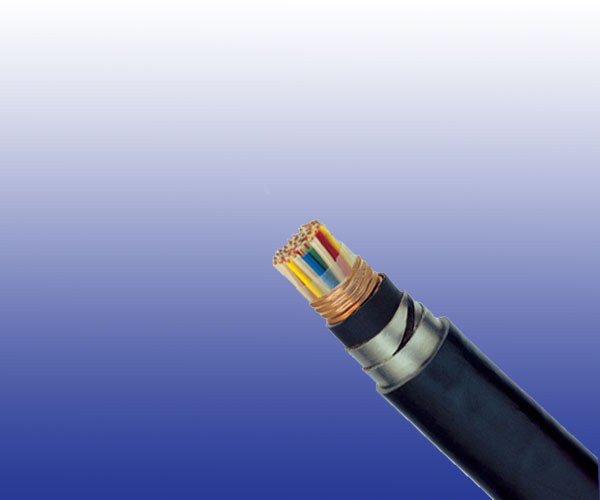

CCPSSP-FR0.3 n×2×0.9/1.4
Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standard

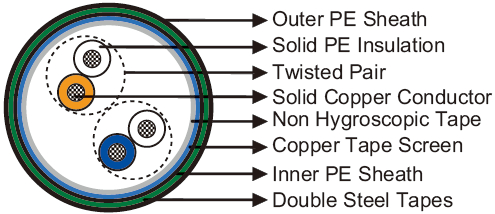

Cable Construction
| Conductors |
Soft annealed solid copper, 1.4 mm nominal diameter. |
| Insulation |
PE. |
| Cabling Element |
Two insulated conductors are twisted together to form a pair. |
| Stranding |
Pairs are helically stranded in concentric layers. |
| Core Wrapping |
Two or more layers of plastic tape(s) with overlapping. |
| Screen |
Copper tapes with overlap (protection against interference). |
| Inner Sheath |
PE sheath. |
| Armour |
Two layers steel tape (0.8mm thick). |
| Outer Sheath |
PE sheath. |
Electrical Characteristics at 20℃
| Nominal Conductor Diameter |
mm |
0.9 |
1.4 |
| Maximum Conductor Resistance |
Ω/km |
28.5 |
11.7 |
| Minimum Insulation Resistance @500 V DC |
MΩ.km |
15000 |
15000 |
| Mutual Capacitance @1KHz |
nF/km |
58 |
58 |
| Capacitance Unbalance @1KHz |
|
|
|
| Pair to Pair |
pF/km |
260 |
260 |
| Pair to Earth |
pF/km |
2625 |
2625 |
| Test Voltage @50Hz 1min |
|
|
|
| Core to Core |
Veff |
2100 |
2100 |
| Core to Screen |
Veff |
2500 |
2500 |
| Reduction Factor @100V/km 50Hz |
|
0.3 |
0.3 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)
Dimensions and Weight
| Cable Code |
Number of Pairs |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Nominal Weight |
| Inner |
Outer |
| |
|
mm |
mm |
mm |
kg/km |
| 0.9mm Conductor, 1.8mm Insulated Wire |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-6P0.9 |
6 |
1.5 |
1.6 |
19.2 |
720 |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-10P0.9 |
10 |
1.5 |
1.6 |
24.0 |
1011 |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-12P0.9 |
12 |
1.5 |
1.6 |
24.5 |
1067 |
| 1.4mm Conductor,2.7mm Insulated Wire |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-2P1.4 |
2 |
1.5 |
1.6 |
22.5 |
904 |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-6P1.4 |
6 |
1.6 |
1.8 |
25.5 |
1155 |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-7P1.4 |
7 |
1.6 |
1.8 |
26.9 |
1258 |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-10P1.4 |
10 |
1.7 |
1.8 |
30.9 |
1542 |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-11P1.4 |
11 |
1.7 |
1.8 |
30.9 |
1576 |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-14P1.4 |
14 |
1.7 |
1.8 |
37.1 |
1827 |
| RS/CCPSSP-FR0.3-2Y(K)2YB2Y-20P1.4 |
20 |
1.8 |
2.0 |
37.9 |
2214 |
