Pair Screened & Insulated Partially Longitudinally Water Blocked Cable

Applications

These outboard installation cables for naval vessels are transversally water blocked and longitudinally completely water blocked (all wires are not water blocked), designed according to VG 95218 part 29.

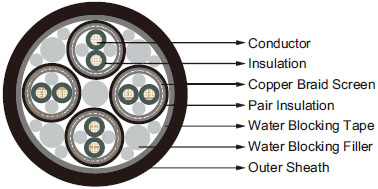

Construction

Pair Screened & Insulated Partially Longitudinally Water Blocked Cable
Conductor Copper conductor, fine stranded.
Insulation Special elastomer.
Cable Element Pairs.
Individual Screen Pairs are screened with tinned copper wire braid.
Pair Insulation Special elastomer.
Fillers Water-blocking fillers.
Separator Water-blocking tapes.
Sheath Cross linked halogen free flame retardant compound.

Electrical Data

500V

Number of Cores × Nominal Cross Section Area Maximum Transfer impedance
No. × mm^2 m Ω /m
4×2×0.75 15
8×2×0.75 15
10×2×0.75 15
27×2×0.38 15
12×2×0.38 15

Dimension and Weight

500V

Number of Cores × Nominal Cross Section Area Maximum Single Core Diameter Minimum Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Maximum Weight
No. × mm^2 mm mm mm mm kg/km
4×2×0.75 1.9 1.7 20.5 20.9 530
8×2×0.75 1.9 2.0 26.1 26.5 880
10×2×0.75 1.9 2.0 32.3 32.9 1350
27×2×0.38 1.3 2.5 42.1 42.7 1800
12×2×0.38 1.9 2.0 30.6 31.2 1190
