Partially Longitudinally Water Blocked Cable

Applications

These outboard installation cables for naval vessels are transversally water blocked and longitudinally completely water blocked (all wires are not water blocked), designed according to VG 95218 part 29.

Construction

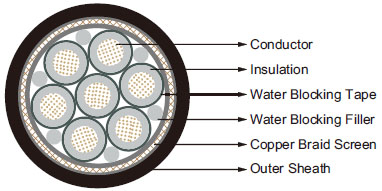

Partially Longitudinally Water Blocked Cable
Conductor Copper conductor, fine stranded.
Insulation Special elastomer.
Separator Water-blocking tapes.
Fillers Water-blocking fillers
Screen Copper braid with tinned wires.
Sheath Cross linked halogen free flame retardant compound.

Electrical Data

500V

Number of Cores × Nominal Cross Section Area Maximum Transfer impedance
No. × mm^2 m Ω /m
27×2×0.38 30
4×0.5 30
2×0.75 30
3×0.75 30
4×2×0.75 30
8×2×0.75 30
10×2×0.75 30
37×0.75 30
4×1.0 30
4×6+2×1.0 30
2×1.5 30
3×1.5 30
3G1.5 30
5×1.5 30
5G1.5 30
7x1.5 30
12×1.5 30
24×1.5 30
19×6 30
2×6.0 30

1200V

Number of Cores × Nominal Cross Section Area Maximum Transfer impedance
No. × mm^2 m Ω /m
1×35 30
1×120 30
1×185 30
1×240 30

Dimension and Weight

500V

Number of Cores × Nominal Cross Section Area Maximum Single Core Diameter Minimum Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Maximum Weight
No. × mm^2 mm mm mm mm kg/km
27×2×0.38 1.35 2.0 22.0 22.6 630
4×0.5 1.5 1.5 9.5 9.7 140
2×0.75 1.9 1.3 7.8 8.2 96
3×0.75 1.9 1.3 8 8.4 110
4×2×0.75 1.9 1.8 14.3 14.9 275
8×2×0.75 1.9 2.0 16.9 17.5 420
10×2×0.75 1.9 2.0 21.2 21.8 600
37×0.75 1.9 2.0 18.3 18.9 650
4×1.0 2.2 2.0 10.0 10.6 175
4×6+2×1.0 5.2/2.2 2.0 17.6 18.2 785
2×1.5 2.4 1.5 9.4 10.0 150
3×1.5 2.4 1.5 9.7 10.3 160
3G1.5 2.4 1.5 9.7 10.3 160
5×1.5 2.4 1.5 11.3 11.8 230
5G1.5 2.4 1.5 11.3 11.8 230
7x1.5 2.4 1.5 11.6 12.2 250
12×1.5 2.4 2.0 15.1 15.7 425
24×1.5 2.4 2.5 21.5 22.1 835
19×6 5.2 2.5 32.5 33 1800
2×6.0 5.2 2.0 16.8 17.4 410

1200V

Number of cores × Nominal Cross Section Area Maximum Single Core Diameter Minimum Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Maximum Weight
No. × mm^2 mm mm mm mm kg/km
1×35 11.3 2.5 17.0 17.5 680
1×120 21.6 2.5 28.7 29.3 2000
1×185 25.3 2.5 31.9 32.5 2900
1×240 29.8 2.5 35.3 35.9 4050
