LSOH Torsion Resistant Power Cable 0.6/1kV

Application

These cables with increased tolerance to torsion application, UV and ozone resistant, good bending and halogen free are specifically designed for the torsion applications in wind turbines, suitable for transmit energy from the generator to the transformer.

Standards

IEC 60502

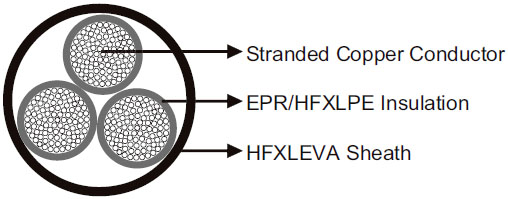

Construction

LSOH Torsion Resistant Power Cable 0.6/1kV
Conductor Stranded tinned copper, class 5/class 6 according to IEC 60228
Insulation EPR/HFXLPE
Sheath HFXLEVA

Technical Data

Rated Voltage U0/U (Um) 0.6/1kV
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 6×OD
Torsion Application +/-144°/m
Flame Retardant IEC 60332-3
Halogen Free IEC 60754
Corrosive Gases IEC 60754
Smoke Density IEC 61034
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes
Cold Resistant CSA C 22.2

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
3×25 27.5 1500
3×35 31.0 1960
3×50 36.0 2640
3×70 40.5 3150
3×95 46.5 4575
3×120 50.5 5490
4×25 30.5 1870
4×35 34.5 2320
4×50 39.0 3100
4×70 43.5 4240
4×95 51.5 5716
4×120 56.0 6950
