S-3GSHCOEU 0.6/1 kV & UL 1000V 90°C

Application

These cables are designed for use at medium mechanical stresses in wind turbines.

Standards

  • UL 758
  • DIN VDE 0250

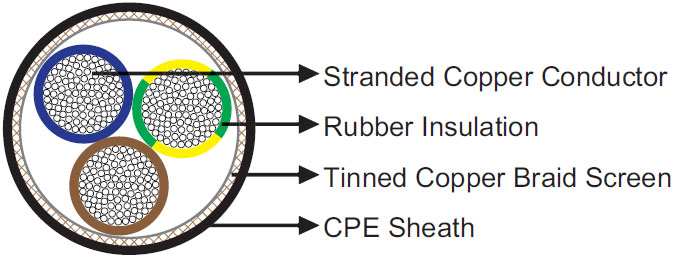

Construction

S-3GSHCOEU 0.6/1 kV & UL 1000V 90°C
Conductor Stranded bare copper, class 5 according to IEC 60228/DIN EN 60228
Insulation Rubber compound
Screen Tinned copper wires. Mixed braid of tinned copper wires and polyester yarn can be offered upon request
Sheath CPE

Technical Data

Rated Voltage Uo/U(Um) 600/1000V (DIN VDE 0250)/1000V (AWM 758)
Operating Temperatures -40℃~+90℃
Maximum Permissible Tensile Load 15 N/mm^2
Minimum Bending Radius flexing: 10×OD; fixed: 6×OD
Short-circuit Temperature 250℃
Flame Retardant IEC 60332-1
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×95 23.0 1120
1×120 26.0 1607
1×185 30.5 2341
1×240 34.0 2953
