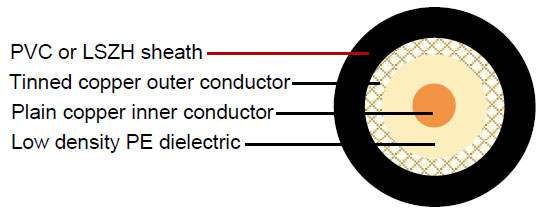

Construction :

• Inner conductor	Plain copper	Φ0.80 ± 0.025 mm
  Dielectric	Low density PE	Φ2.95 ± 0.10 mm
  Outer conductor	Tinned copper	112 x 0.13 mm
  Shield coverage		95%
  Sheath	PVC or LSZH	Φ5.00 ± 0.10 mm

•

Electrical & Mechanical Characteristics :

• Impedance	Nom.53±3 Ohm
  Nominal capacitance	94 pF/m
  Velocity of propagation	66%
  Insulation resistance	>2000 Mohm.Km
  Inner conductor resistance	35.0 Ohm/Km
  Outer conductor resistance	16.5 Ohm/Km
  Test/Operatig Voltage(max)	5 KV/2 KV
  Operating temperature range	-30 °C - +70 °C
  Copper Weight	18.7 Kg/Km
  Cable weight (approx.)	39.9 Kg/Km
  Screening effectiveness	100-900 MHz	>55dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100ft)
  50	9.1	2.77
  100	13.1	3.99
  200	19.4	5.91
  400	28.4	8.66
  500	32.2	9.82
  600	35.7	10.88
  860	44.8	13.66
  1000	49.0	14.94

Return Loss :

• 30-300 MHz	>26dB
  300-600 MHz	>25dB
  600-900 MHz	>24dB
