SR141

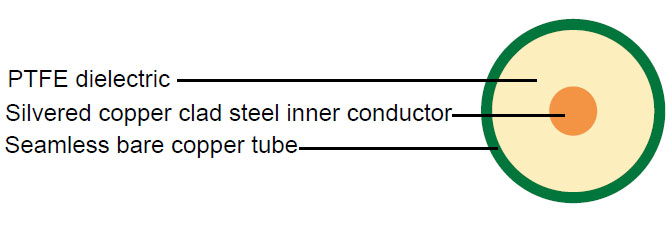

Construction :

  • Inner conductor Silver plated copper clad steel Φ0.93 mm
    Dielectric PTFE Φ3.00 ± 0.1 mm
    Outer conductor type1: Seamless bare copper tube Φ3.58 ± 0.1 mm
    type2: Seamless copper tube, tin plated(TP)
    type3: Seamless copper tube, Silver plated(SP)
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 95.1 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operating temperature range -55°C - +125 °C
    Outer conductor integrity temperature 175°C
    Min.bending radius 12.5 mm

Attenuation :

  • Frequency(MHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    500 26 7.9
    1000 38 11.6
    5000 91 27.7
    10000 137 41.8
    20000 209 63.7
