Type W Four-Conductor Flat Portable Power Cable 2kV



Applications :

  • These flat parallel cables are designed for use on AC mining equipment, such as A.C. shuttle cars, drills,cutting and loading machines.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

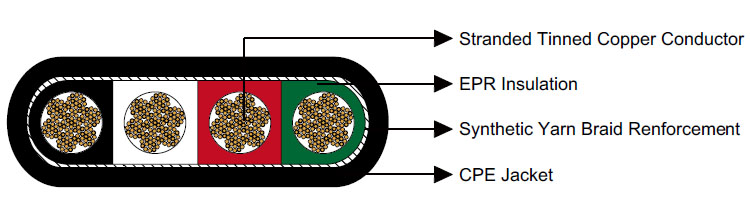

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Reinforcement Synthetic yarn.
    Jacket Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter
    Height×Width    		 Nominal Weight Ampacity
    No. of
    cores×AWG/kcmil    		 - inch mm inch mm inch mm lbs/kft kg/km A
    4×6 133 0.06 1.5 0.095 2.4 0.67×1.69 17.0×42.9 895 1332 72
    4×4 259 0.06 1.5 0.110 2.8 0.75×1.89 19.0×48.0 1185 1764 93
    4×2 259 0.06 1.5 0.110 2.8 0.84×2.23 20.6×56.6 1620 2411 122
    4×1 259 0.08 2.0 0.125 3.2 0.97×2.60 24.6×66.0 2100 3125 143
    4×1/0 259 0.08 2.0 0.140 3.6 1.01×2.73 25.7×69.3 2500 3721 165
    4×2/0 329 0.08 2.0 0.140 3.6 1.10×2.96 27.9×75.2 2900 4316 192
    4×3/0 413 0.08 2.0 0.155 3.9 1.18×3.25 30.0×82.6 3500 5209 221
    4×4/0 532 0.08 2.0 0.155 3.9 1.29×3.46 32.8×87.9 4225 6288 255
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
