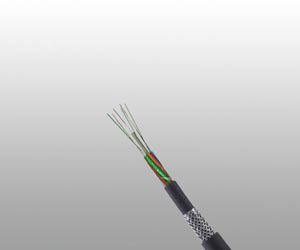

F1 QFCI



Applications :

  • These steel armoured optical fibre cables are flame retardant, low smoke, halogen free and fire resistant, used for communication and emergency systems that need to be operational during fire.

Standards :

  • IEC 60794 IEC 60811-2-1
    IIEC 60331-25 IEC 60332-3-24
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004

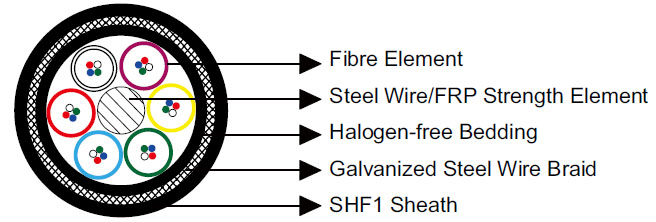

Construction :

  • Fibre Element : Loose tube core design.
  • Central Strength Element : Steel wire or fibre reinforced plastic (FRP).
  • Bedding : Halogen free and flame retardant thermoplastic compound.
  • Armour : Galvanized steel wire braid.
  • Outer Sheath : Halogen free and flame retardant, UV-stabilized, thermoplastic compound, SHF1.

Optional :

  • F4 QFCI-HCF : QFCI-HCF cables are consist of loose tube fibre element, steel wire or FRP central strength element, halogen free and flame retardant thermoplastic bedding, galvanized steel wire braid armour, SHF1 sheath, HC-fire protection, fire resistant tape and SHF1 outer sheath.

Electrical Characteristics :

  • Fibre Type   9/125 50/125 50/125 62.5/125
    ITU-T type   G652.D G651 G651 -
    IEC11801 Classification   OS1 & OS2 OM2 OM3 OM1
    Core Diameter μm 8.7±0.4 50±3.0 50±3.0 62.5±3.0
    Cladding Diameter μm 125 ±1.0 125 ±2.0 125 ±2.0 125 ±2.0
    Coating Diameter μm 245 ±10 245 ±10 245 ±10 245 ±10
    Maximum Attenuation
    @850 nm dB/km - 3.0 3.0 3.5
    @1300 nm dB/km - 1.5 1.0 1.5
    @1310 nm dB/km 0.36 - - -
    @1550 nm dB/km 0.22 - - -
    Minimum Bandwidth(OFL*)
    @850 nm MHz.km - 500 1500 200
    @1300 nm MHz.km - 500 500 600
    Maximum Chromatic Dispersion
    1285-1330 nm ps/nm⋅km 2.8 - - -
    1550 nm ps/nm⋅km 18 - - -
    Zero Dis ersion Wavelen th nm 1300~1324 - - -

Mechanical and Thermal Properties :

  • Bending Radius : 20×OD (during installation); 10×OD (fixed installed).
  • Temperature Range : -40℃ ~ +70℃.

Dimensions and Weight :



No. of Fibres Construction No. of tubes×No. of fibres in each tube Number of Fillers Nominal Loose Tube Diameter
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
2 1×2 5 2.2 13.9 244
4 1×4 5 2.2 13.9 244
6 3×2 3 2.2 13.9 244
8 2×4 4 2.2 13.9 244
10 5×2 1 2.2 13.9 244
12 3×4 3 2.2 13.9 244
16 4×4 2 2.2 13.9 244
20 5×4 1 2.2 13.9 244
24 6×4 0 2.2 13.9 244
32 4×8 2 2.2 13.9 244
40 5×8 1 2.2 13.9 244
48 6×8 0 2.2 13.9 244
