SR Insulated & LSZH Sheathed Fire Resistant Cables to DIN VDE 0815 |
| JE-H(St)H…Bd FE180 E30 |
JE-H(St)H…Bd FE180 E30 BMK |
|
|
| |
| Applications |
|
| |
The cables are similar in design and application to CW 1600, but with Silicon Rubber Insulation. They are used for the internal wiring of building when the circuit integrity during fire is paramount. The cables are intended for use in fire fighting plants with special ceramized silicon insulation, with and without aluminium foil and LSZH outer sheath . |
| Standards |
| |
| • EN 50200:2000-02 |
• EN 50266 |
• EN 50267 |
| • EN 50268 |
• BS 6387 |
• IEC 60331 |
| • DIN VDE 0472-814 |
|
|
|

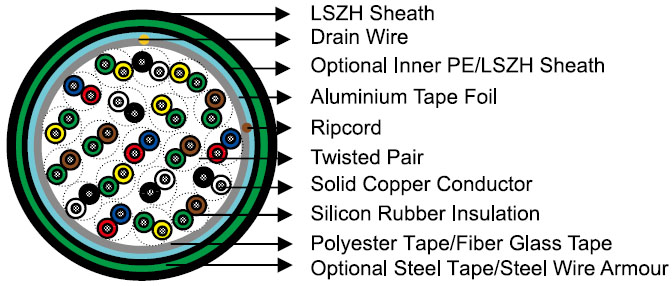

| Construction |
|
| |
Conductors: Solid annealed bare or tinned copper sized 0.6/0.8/0.9mm as per class 1 of VDE 0295/IEC 60228. |
| |
Insulation: Silicon Rubber compound as per DIN VDE 0266. |
| |
Twisted Pairs: Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk. |
| |
Cabling Element: Twisted Pairs. |
| |
Cable Core Assembly: The twisted pairs are stranded to the core in layers. |
| |
Core Wrapping: One or more non hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing. |
|
| |
Screen: A laminated Aluminium/Polyester tape is placed in contact with solid copper 0.6mm or 0.8mm drain wire. |
|
| |
Inner bedding (for armoured cables): PE or LSZH compound. |
|
| |
Armourwz (for armoured cables): Either corrugated steel tape armour or galvanized steel wire is applied over an inner polyethylene sheath. For steel tape armour, the 0.15mm thick steel tape is coated with a copolymer and applied with an overlap. For steel wire armour, single layer of galvanized steel wire armour is applied. |
|
| |
Sheath: LSZH compound HM2 as per VDE 0207-24. |
|
| |
Ripcord: Nylon ripcord may be placed parallel to the cores to facilitate sheath removal. |
|
| |
Drain Wire: A solid tinned earth/continuity wire shall be laid longitudinally for screened cables. |
|
| Type codes |
| |
| JE |
Fire Alarm Cable |
H |
Halogen Free & Zero Halogen |
| Bd |
Unit stranding |
(St) |
Static Shield of aluminium tape |
| FE180 |
Insulation Integrity (950°C 180 minutes) |
E30 |
30 minutes Circuit Integrity |
|
| Electrical properties |
|
| |
| Conductor Diameter |
mm |
0.6 |
0.8 |
0.9 |
| Conductor Size |
mm2 |
0.283 |
0.5 |
0.312 |
| Maximum Conductor Resistance @20°C |
Ω/km |
63 |
34.6 |
28.0 |
| Maximum Loop Resistance @20°C |
Ω/km |
130 |
73.2 |
60 |
| Minimum Insulation Resistance @500V DC @20°C |
MΩ.km |
100 |
100 |
100 |
| Maximum Average Attenuation @0.8KHz |
dB/km |
1.7 |
1.2 |
0.74 |
| Nominal Mutual Capacitance @0.8KHz |
nF/km |
120 |
120 |
120 |
| Maximum Capacitance Unbalance K1 @0.8KHz pair-to-pair |
pF/100m |
200 |
200 |
200 |
| Working Voltage |
V |
225 |
225 |
225 |
| Nominal Insulation Thickness |
mm |
0.3 |
0.4 |
0.45 |
| Nominal Insulated Conductor Diameter |
mm |
1.2 |
1.6 |
1.7 |
|
|
| Mechanical and thermal properties |
| |
Temperature range during operation (fixed state) : -30°C – +70°C |
| |
Temperature range during installation (mobile state) : -20°C – +50°C |
| |
Minimum bending radius : 7.5 x Overall Diameter (unarmoured cable);15 x Overall Diameter (armoured cables). |
| Fire Hazard Performance |
| |
| 1) Minimum Smoke Emission |
IEC 61034, EN 50268 (New: EN 61034), VDE 0482-268 (New: VDE 0482-1034) |
| These standards specify a method to measure the generation of smoke from cables during fire. The result is expressed as percentage of light transmitted. Usually, the smoke density shall not be less than 60%. |
| 2) Halogen Free |
IEC 60754-1, EN 50267-2-1 |
| These standards specify a method for determination of the amount of halogen acid gas,evolved during combustion of compound. The hydrochloric acid yield should be less than 0.5%. |
| 3) Non corrosive gases |
IEC 60754-2, EN 50267-2-2, VDE 0482-267 |
| These standards specify a method for determination of acidity of gas evolved during combustion of cables by measuring PH and conductivity. The specimen is deemed to pass the standard if the pH value is less than 4.3 when related to 1 litre of water and conductivity is less than 10 μs/min. |
| 4) Reduced Fire Propagation |
IEC 60332-3C, EN 50266-2-4, VDE 0482-266-2-4 |
| These standards specify a method for flame propagation test for bunched cables. |
| 5) Flame Retardancy |
IEC 60332-1, VDE 0482-265-2-1 |
| These standards specify a method for flame propagation test for single core cables. |
| 6) Insulation Integrity FE 180 |
DIN VDE 0472-814, IEC 60331,EN 50200, VDE 0482-1 |
| These standards specify the performance requirements for cables required to maintain insulation integrity under fire conditions. |
| 7) Circuit Integrity E30 |
DIN 4102-12 |
| These standards specify the performance requirements for cables required to maintain circuit integrity under fire conditions. |
|
|
| Color Code |
| |
Quad colour in each bundle: |
| |
| Pair 1 : |
Blue-Red |
Pair 2 : |
Green-Yellow |
| Pair 3 : |
Green-Brown |
Pair 4 : |
White-Black |
|
| |
The individual bundles are identified by a numbered helix. |
| Dimensions and weight |
| |
VDE CODE: JE-H(St)H…x2x0.8 Bd FE180 E30 |
| |
| Cable Code |
Number of
Pairs |
Nominal Insulation
Thickness
mm |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.8mm Conductor, 1.6mm Insulated Wire |
| TP815JE-H(St)H-Bd-FE180-E30-1P08 |
1 |
0.4 |
1.0 |
6.0 |
46 |
| TP815JE-H(St)H-Bd-FE180-E30-2P08 |
2 |
0.4 |
1.0 |
6.6 |
61 |
| TP815JE-H(St)H-Bd-FE180-E30-4P08 |
4 |
0.4 |
1.0 |
8.8 |
104 |
| TP815JE-H(St)H-Bd-FE180-E30-6P08 |
6 |
0.4 |
1.0 |
10.8 |
160 |
| TP815JE-H(St)H-Bd-FE180-E30-8P08 |
8 |
0.4 |
1.0 |
12.8 |
218 |
| TP815JE-H(St)H-Bd-FE180-E30-10P08 |
10 |
0.4 |
1.2 |
13.1 |
220 |
| TP815JE-H(St)H-Bd-FE180-E30-12P08 |
12 |
0.4 |
1.2 |
13.5 |
235 |
| TP815JE-H(St)H-Bd-FE180-E30-16P08 |
16 |
0.4 |
1.2 |
14.7 |
297 |
| TP815JE-H(St)H-Bd-FE180-E30-20P08 |
20 |
0.4 |
1.2 |
16.1 |
367 |
| TP815JE-H(St)H-Bd-FE180-E30-24P08 |
24 |
0.4 |
1.4 |
18.1 |
440 |
| TP815JE-H(St)H-Bd-FE180-E30-30P08 |
30 |
0.4 |
1.4 |
20.1 |
645 |
| TP815JE-H(St)H-Bd-FE180-E30-32P08 |
32 |
0.4 |
1.4 |
20.6 |
645 |
| TP815JE-H(St)H-Bd-FE180-E30-40P08 |
40 |
0.4 |
1.4 |
22.5 |
656 |
| TP815JE-H(St)H-Bd-FE180-E30-50P08 |
50 |
0.4 |
1.6 |
24.3 |
840 |
|
| |
|
| |
VDE CODE: JE-H(St)H(SWA)H…x2x0.6/0.8/0.9 Bd FE180 E30 |
| |
| Cable Code |
Number of
Pairs |
Nominal Insulation
Thickness
mm |
Nominal Bedding/
Sheath Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.6mm Conductor,1.2mm Insulated Wire |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-2P06 |
2 |
0.3 |
1.0/1.8 |
12.1 |
305 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-3P06 |
3 |
0.3 |
1.0/1.8 |
12.6 |
325 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-6P06 |
6 |
0.3 |
1.0/1.8 |
13.2 |
380 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-8P06 |
8 |
0.3 |
1.0/1.8 |
14.6 |
415 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-10P06 |
10 |
0.3 |
1.0/1.8 |
16.5 |
450 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-12P06 |
12 |
0.3 |
1.0/1.8 |
17.0 |
500 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-20P06 |
20 |
0.3 |
1.0/1.8 |
20.5 |
580 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-25P06 |
25 |
0.3 |
1.0/1.8 |
21.5 |
940 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-30P06 |
30 |
0.3 |
1.0/1.8 |
22.5 |
1300 |
| 0.8mm Conductor, 1.6mm Insulated Wire |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-2P08 |
2 |
0.4 |
1.0/1.8 |
14.0 |
415 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-3P08 |
3 |
0.4 |
1.0/1.8 |
14.0 |
425 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-6P08 |
6 |
0.4 |
1.0/1.8 |
15.0 |
485 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-8P08 |
8 |
0.4 |
1.0/1.8 |
17.5 |
520 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-10P08 |
10 |
0.4 |
1.2/1.8 |
19.0 |
540 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-12P08 |
12 |
0.4 |
1.2/1.8 |
20.5 |
600 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-20P08 |
20 |
0.4 |
1.4/1.8 |
24.5 |
1050 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-25P08 |
25 |
0.4 |
1.4/1.8 |
27.0 |
1250 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-30P08 |
30 |
0.4 |
1.4/1.8 |
28.5 |
1450 |
| 0.9mm Conductor, 1.7mm Insulated Wire |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-10P09 |
10 |
0.45 |
1.2/1.8 |
19.7 |
600 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-15P09 |
15 |
0.45 |
1.2/1.8 |
23.0 |
1020 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-20P09 |
20 |
0.45 |
1.4/1.8 |
25.3 |
1160 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-25P09 |
25 |
0.45 |
1.4/1.8 |
27.3 |
1330 |
| TP815JE-H(St)H(SWA)H-Bd-FE180-E30-30P09 |
30 |
0.45 |
1.4/1.8 |
29.3 |
1520 |
|
| |
|
